Tyvek / ProShield 20

Model CHF5

ProShield 20

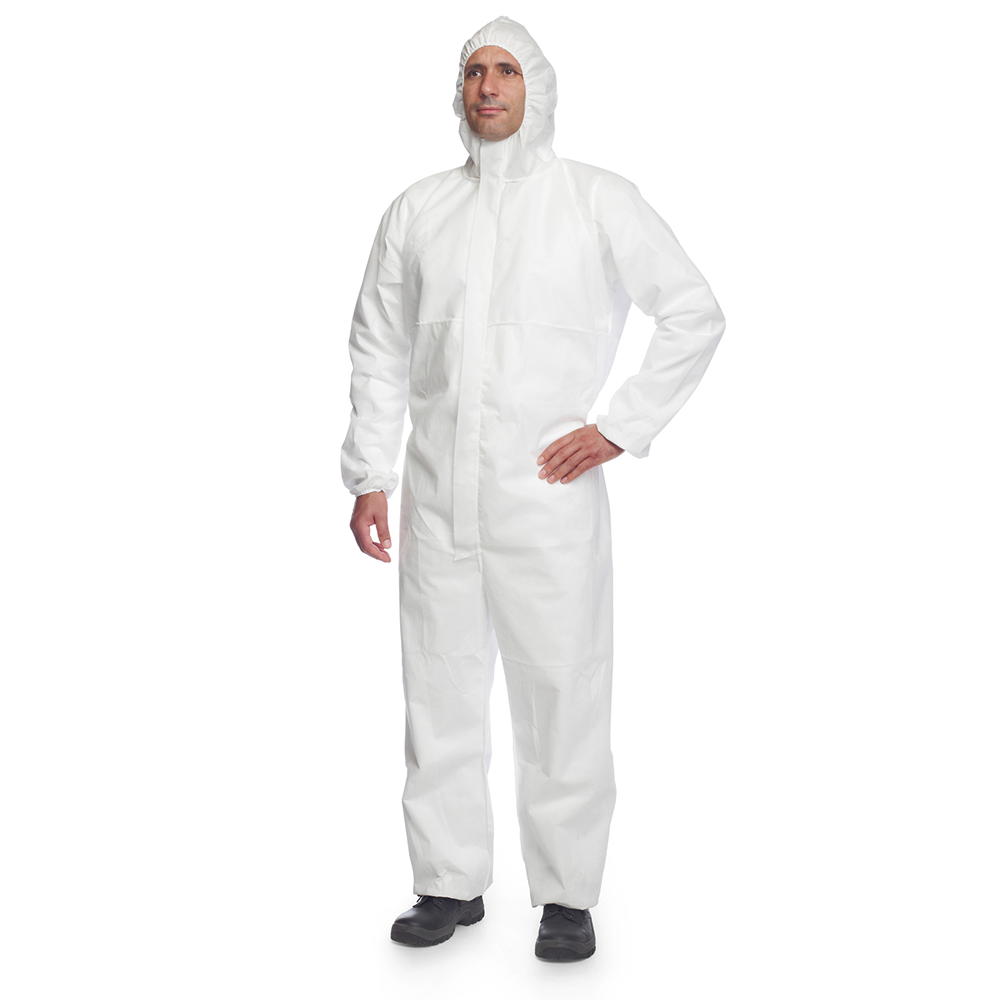

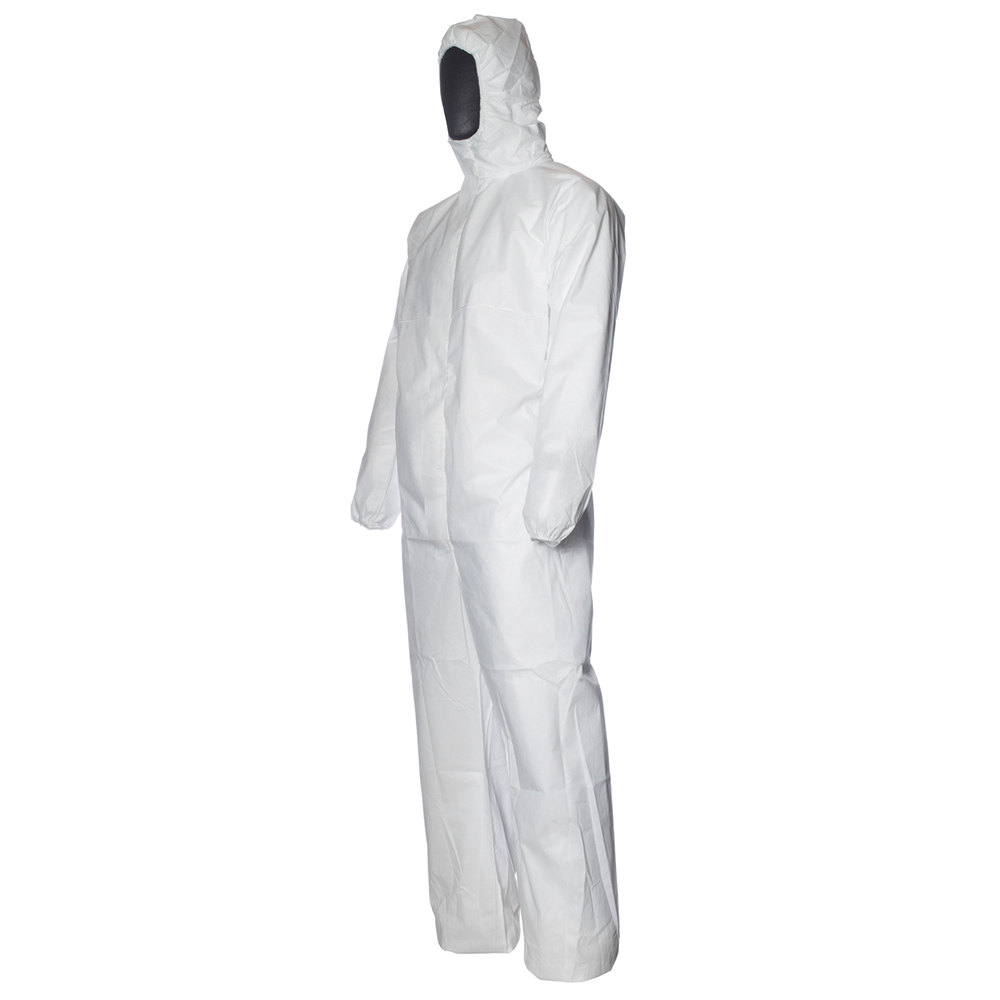

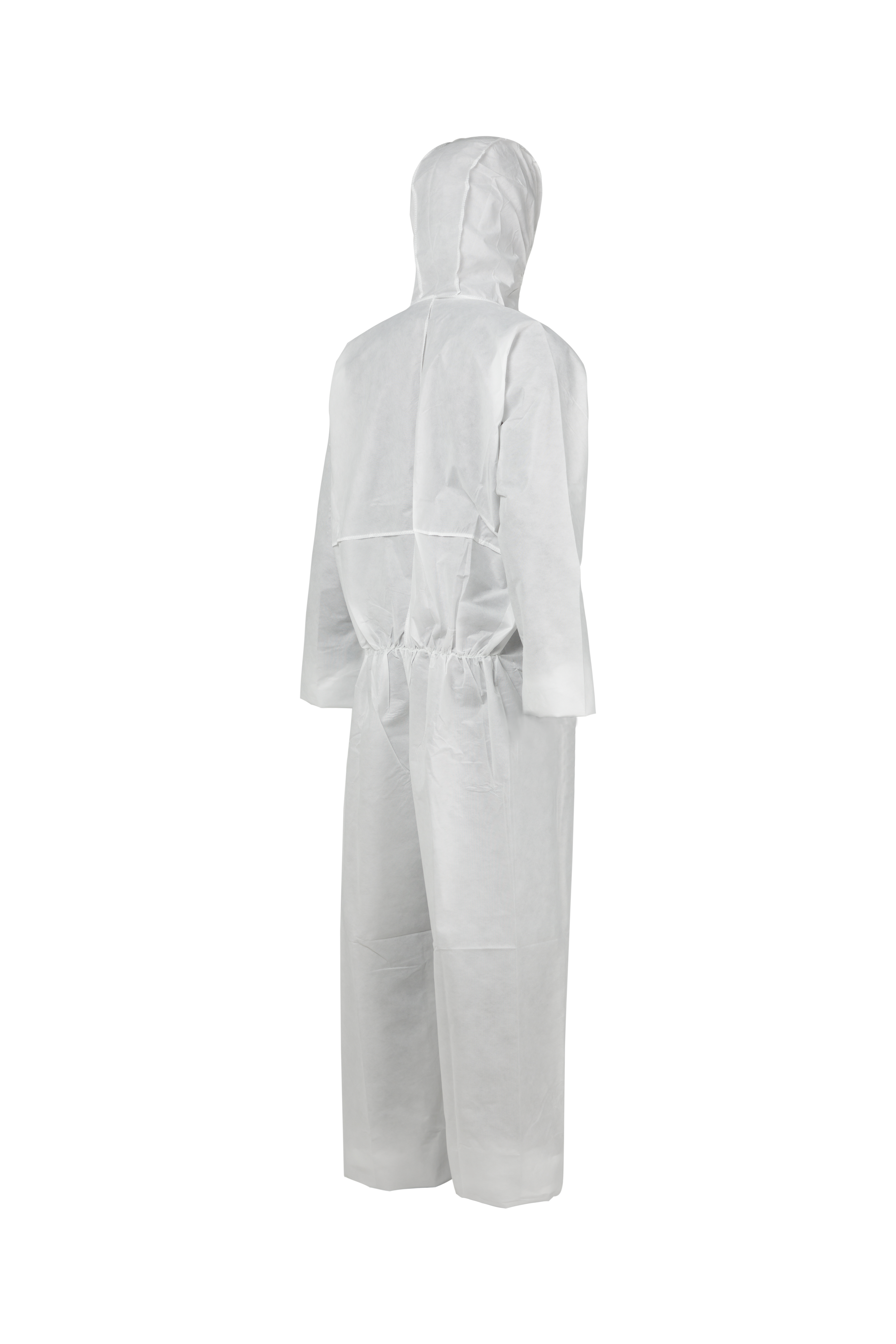

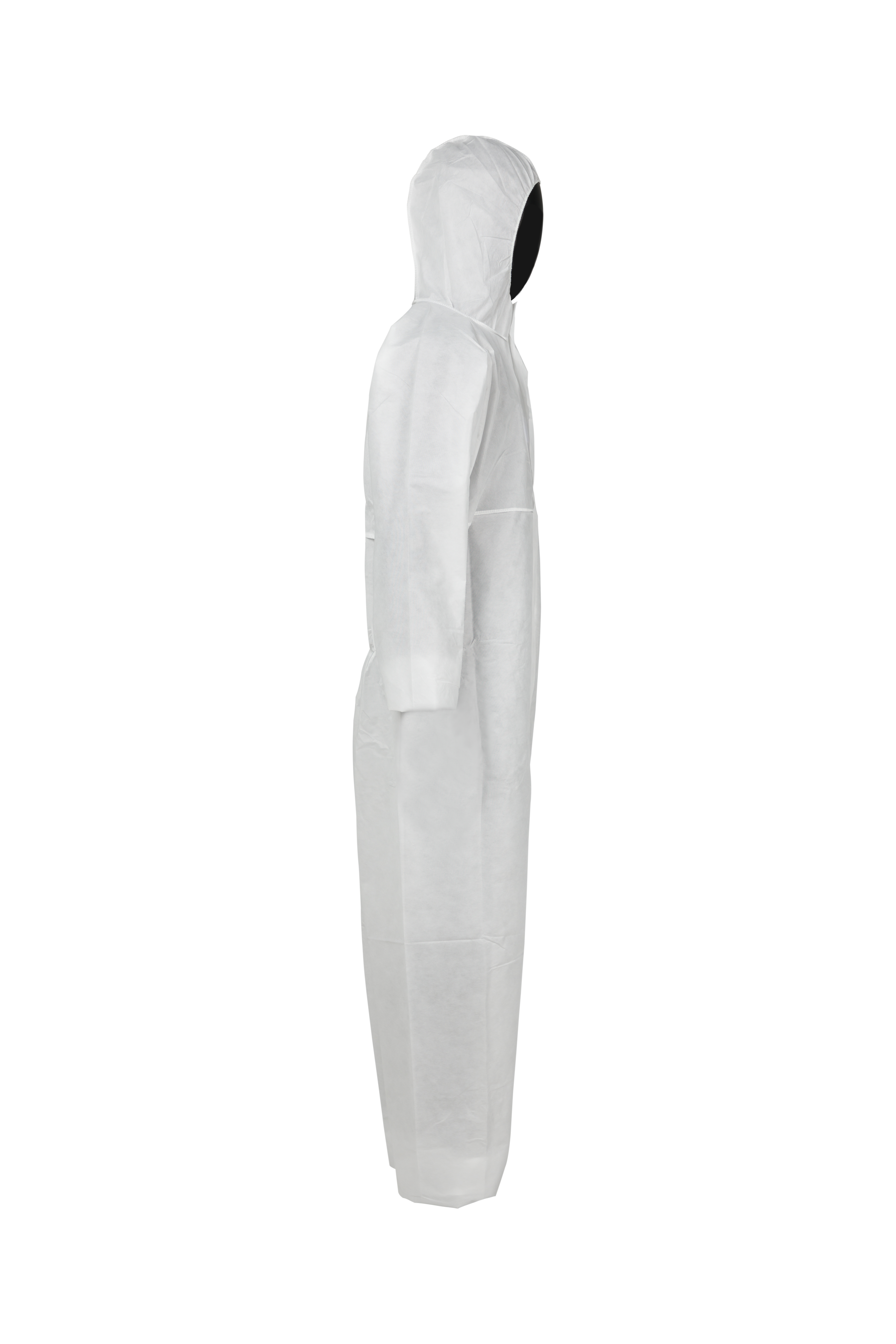

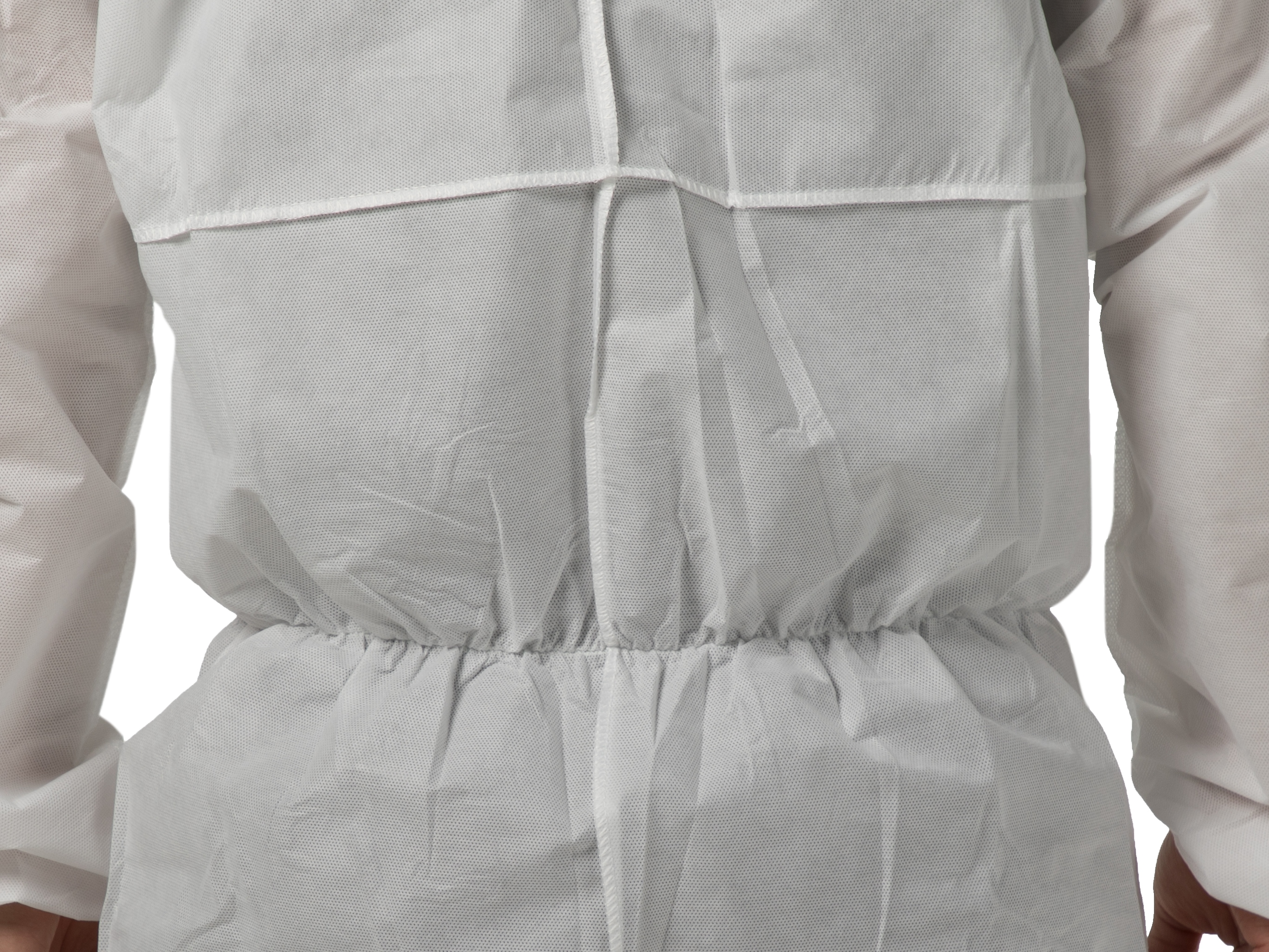

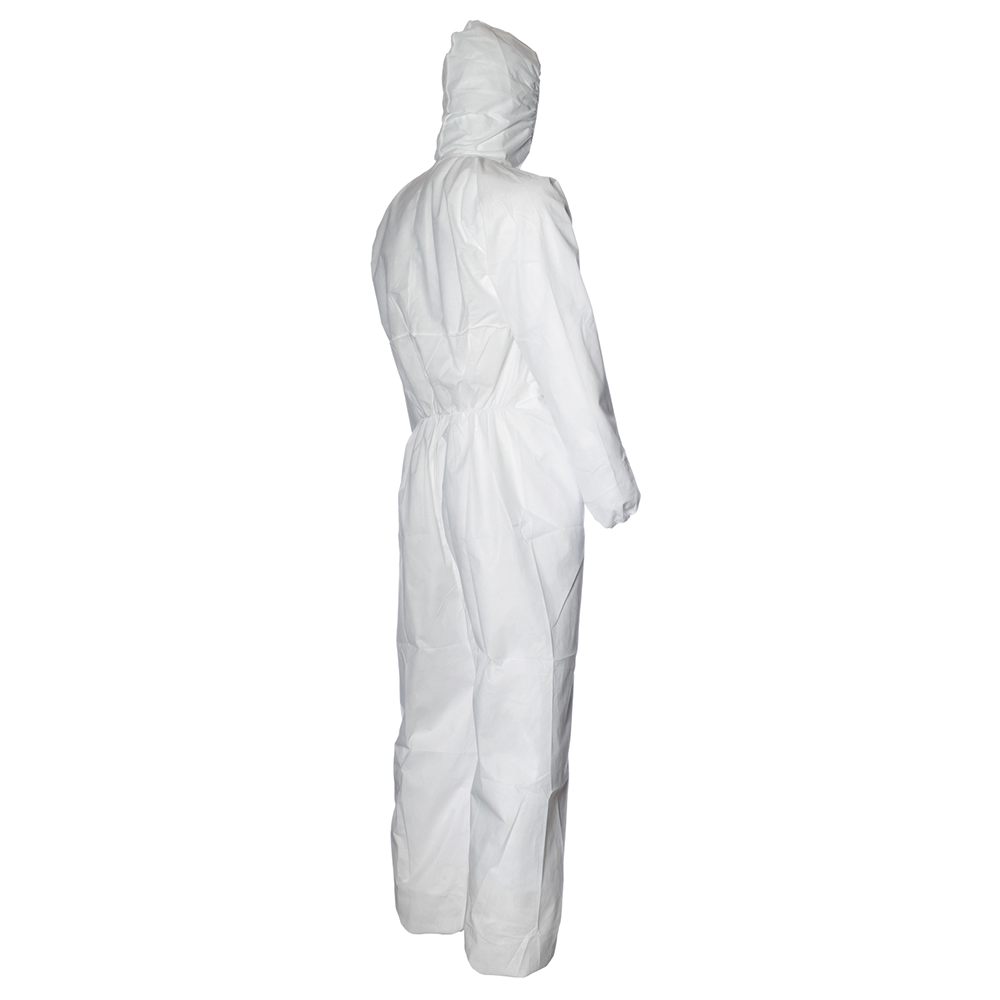

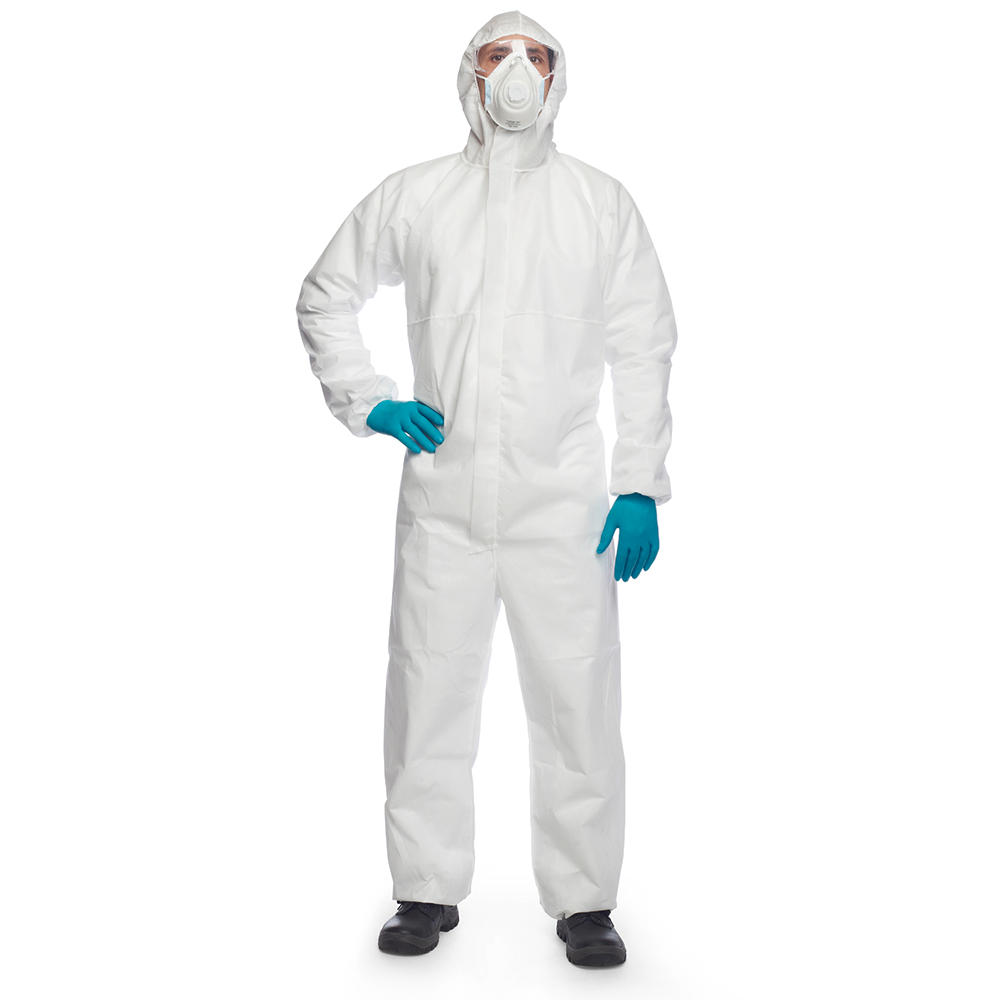

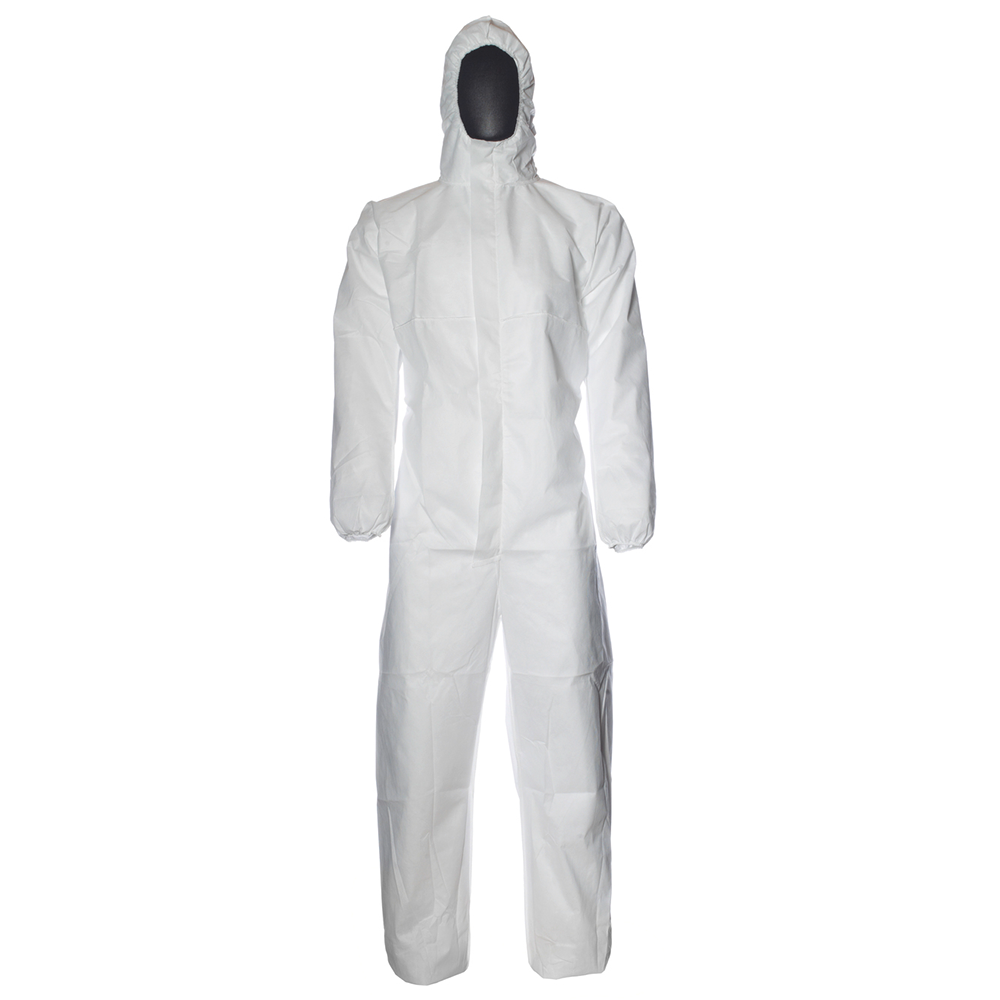

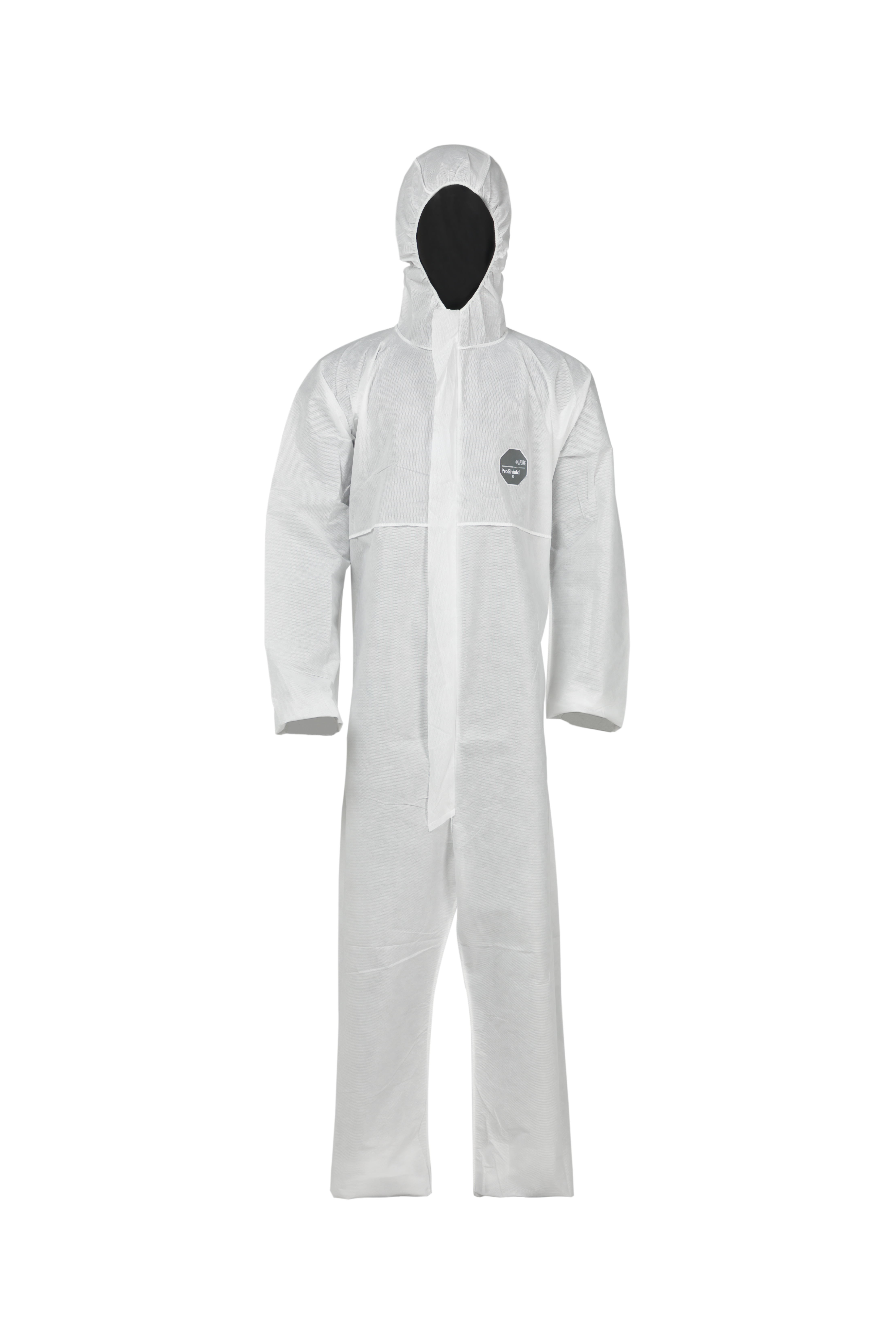

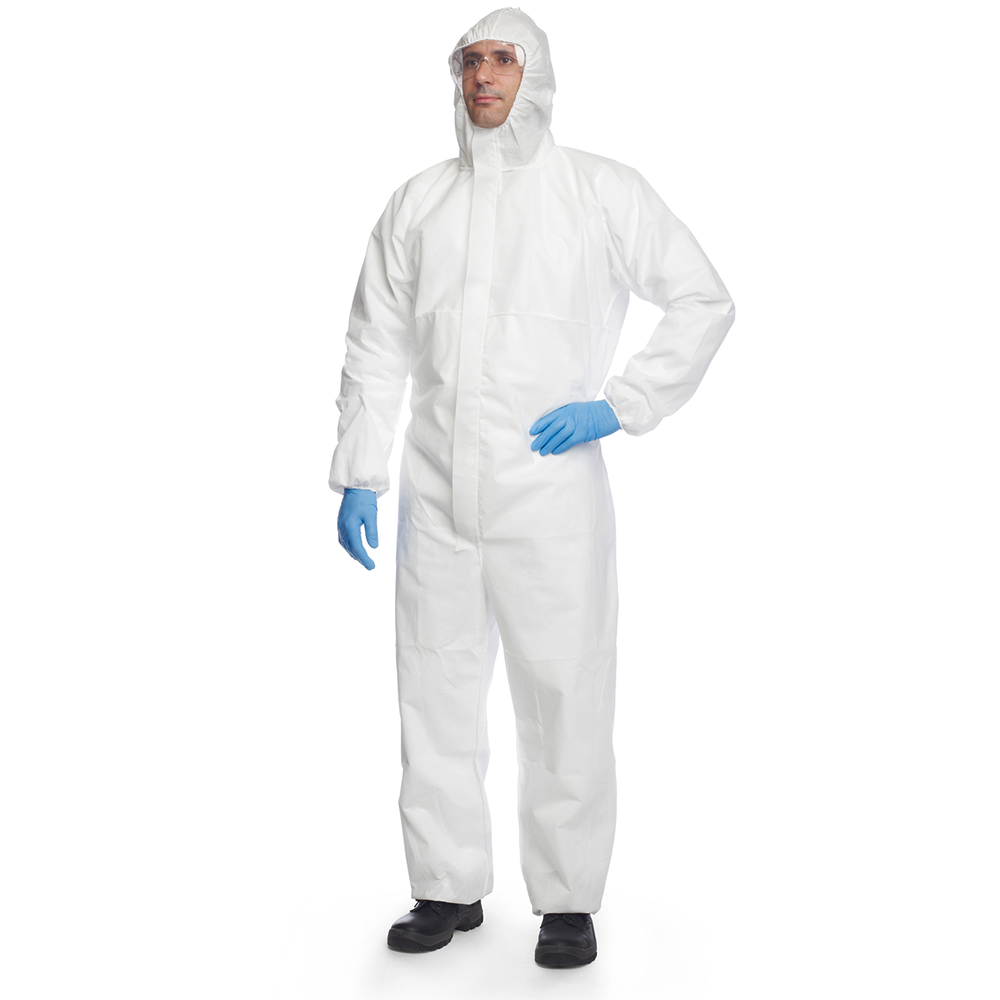

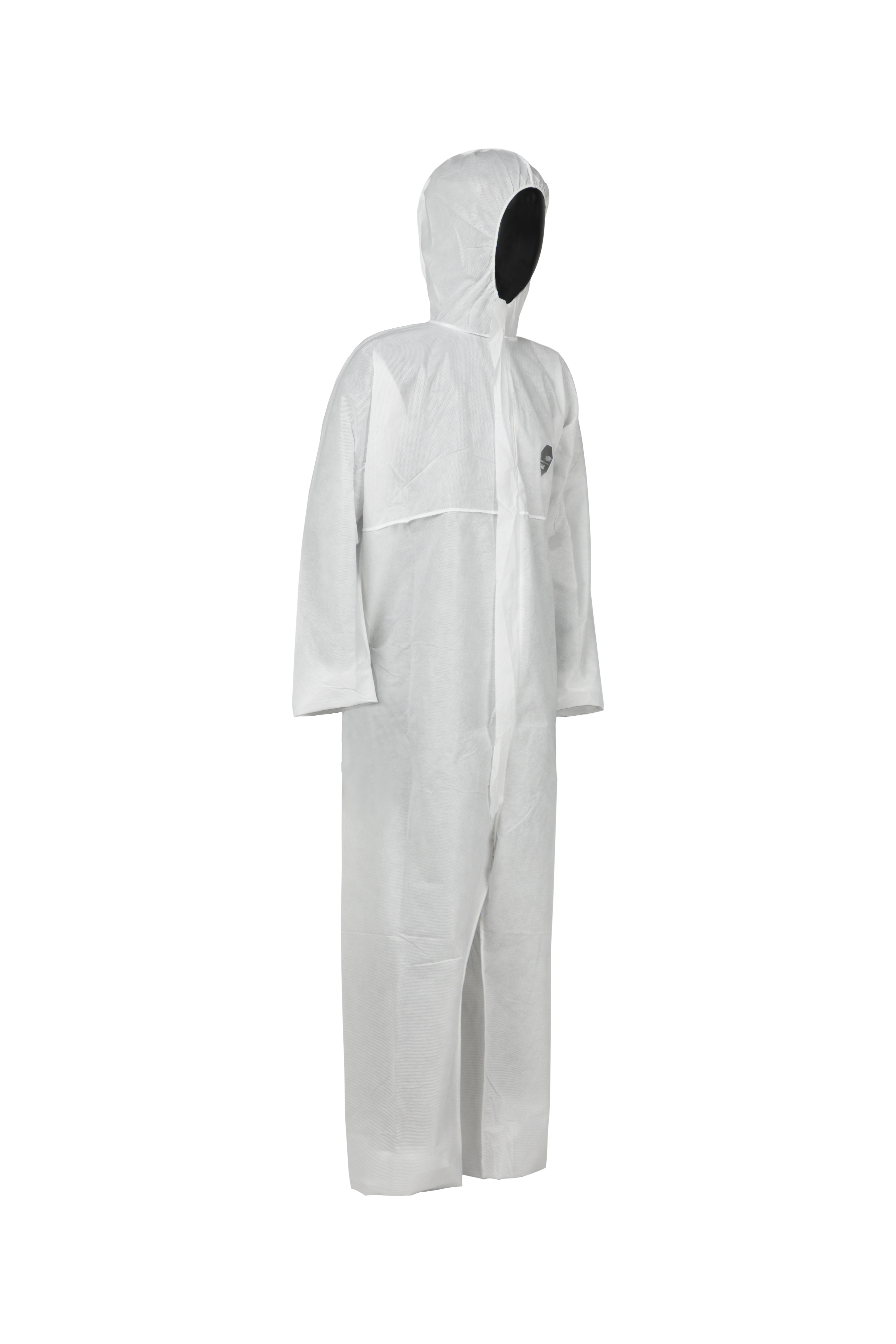

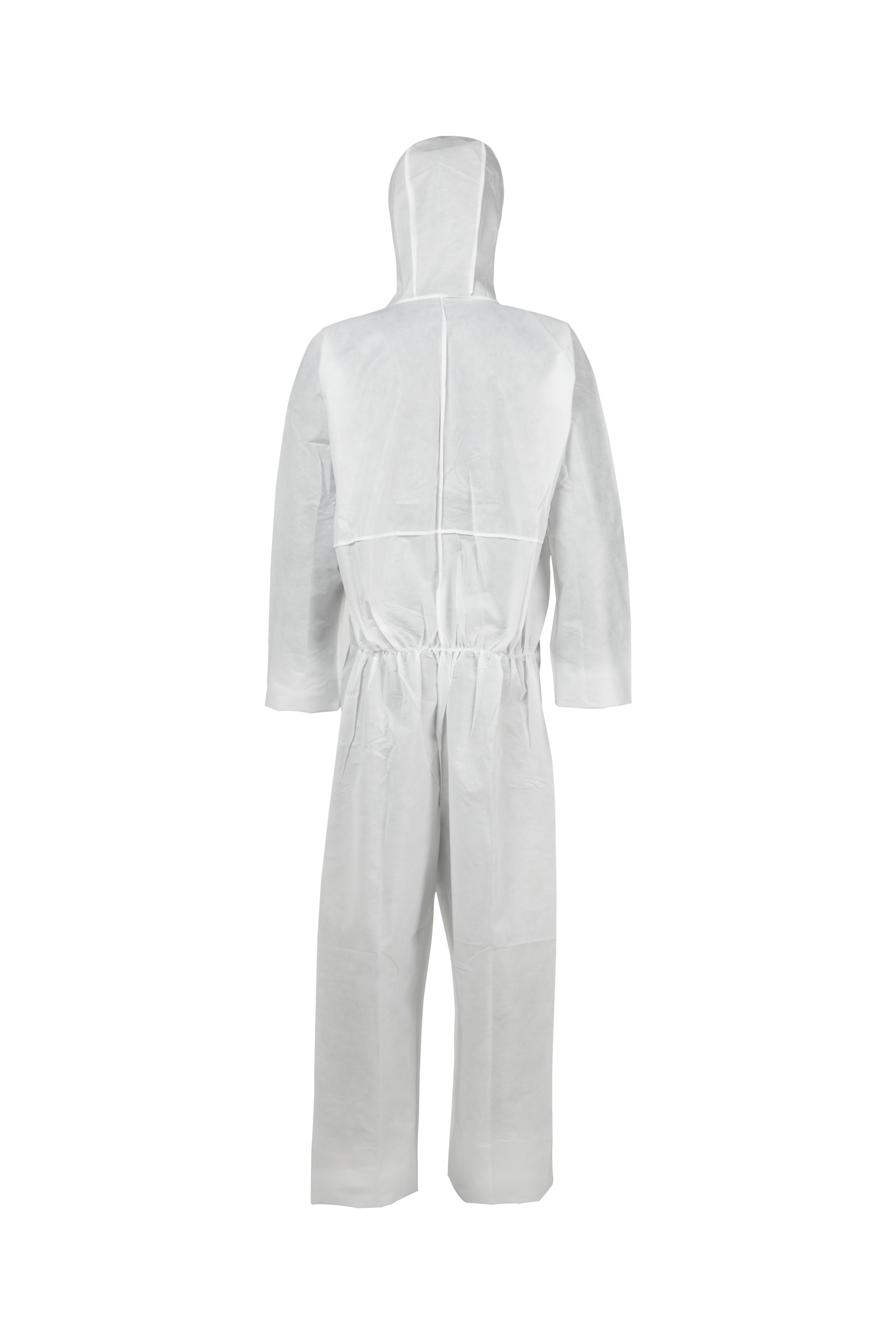

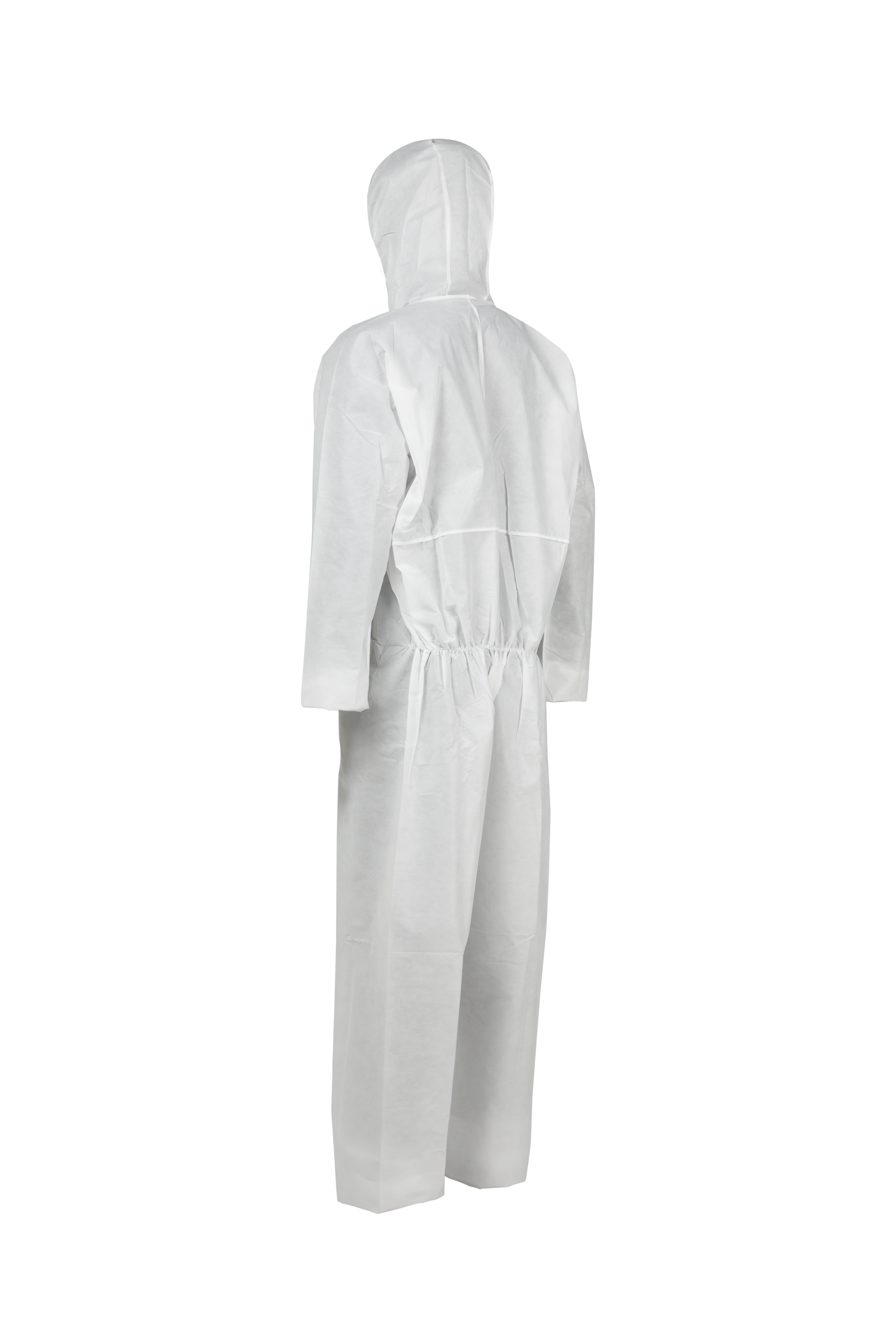

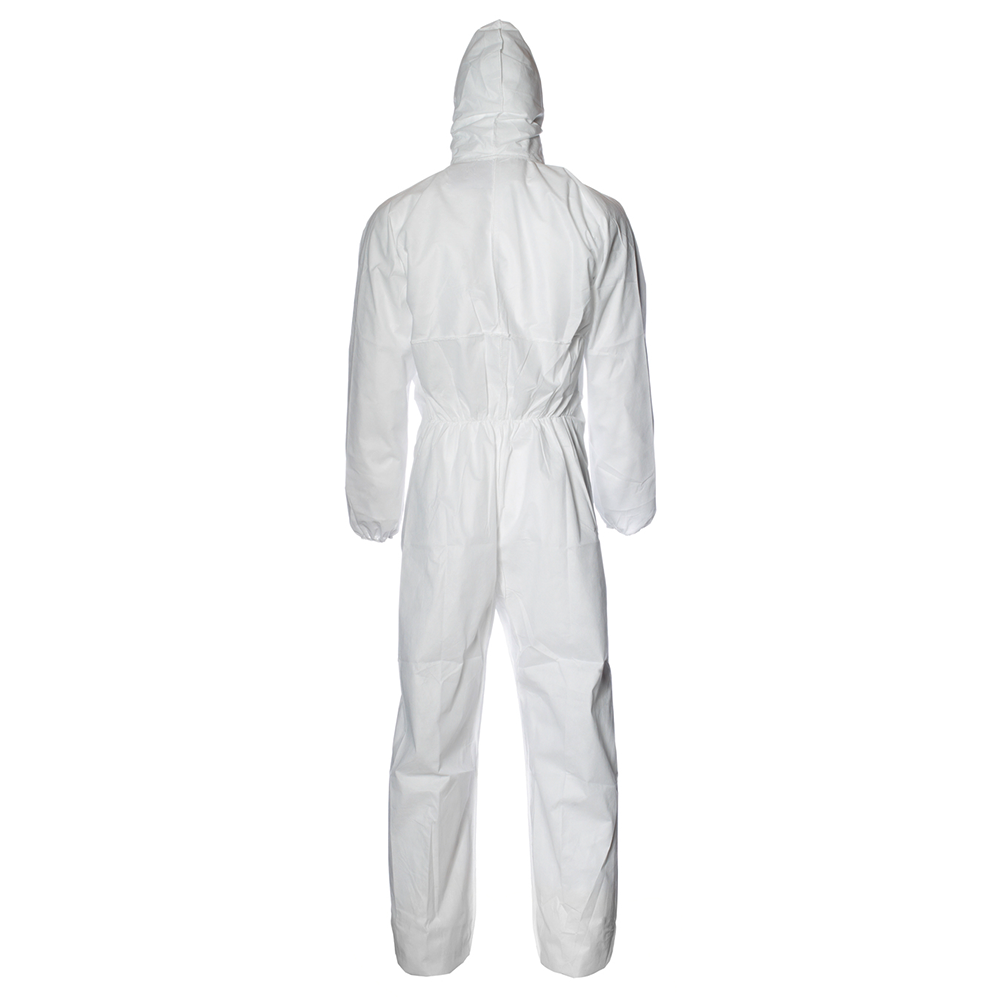

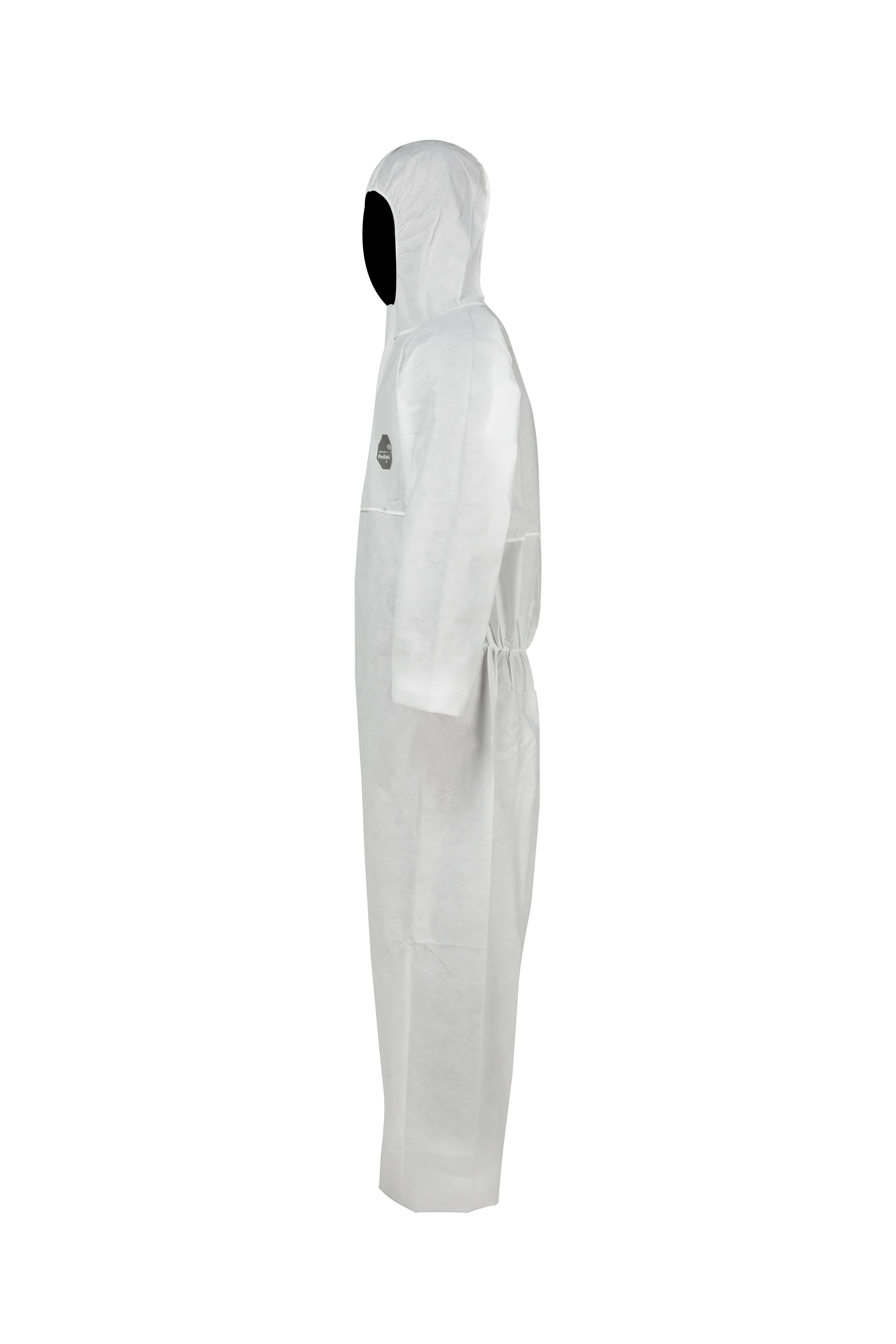

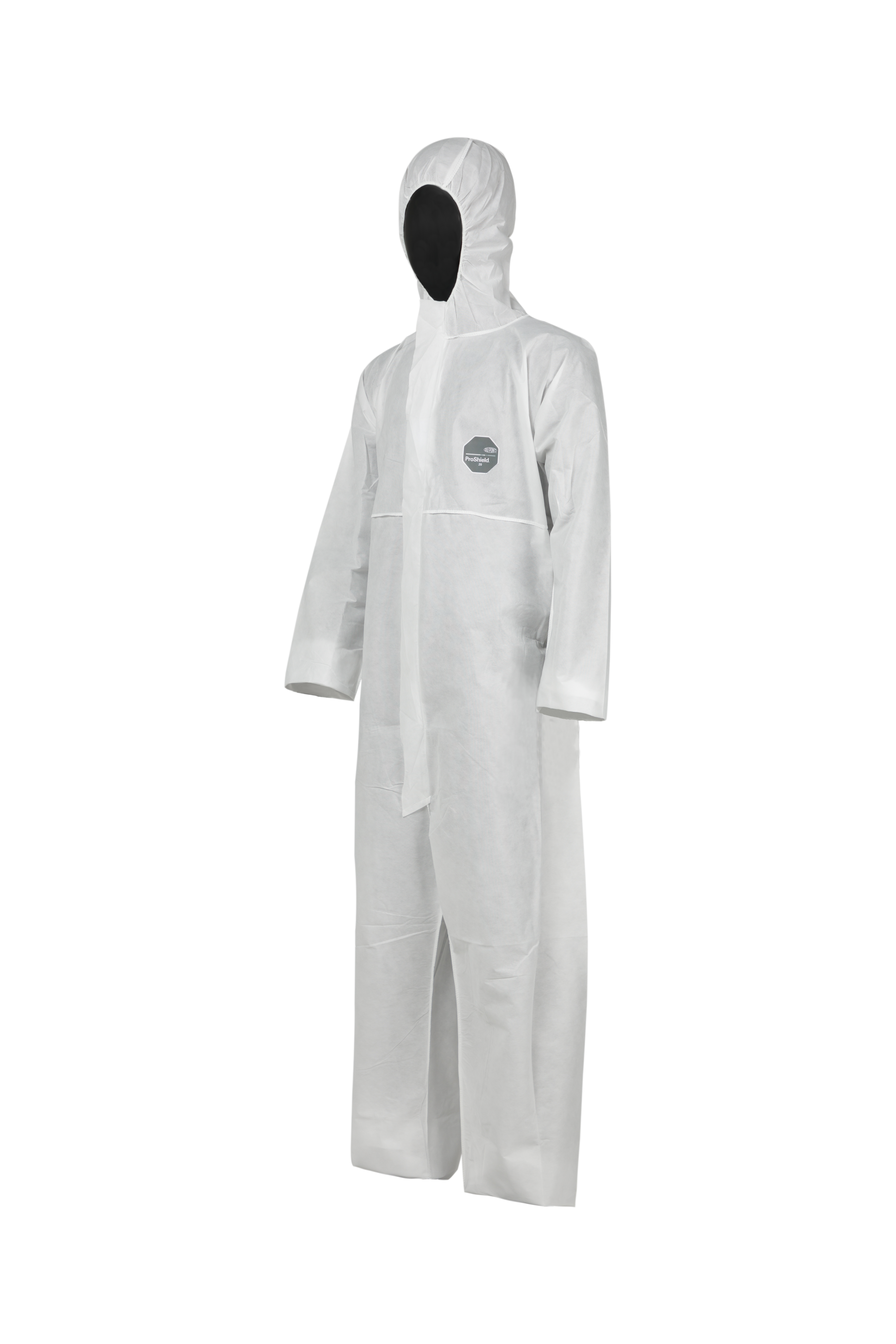

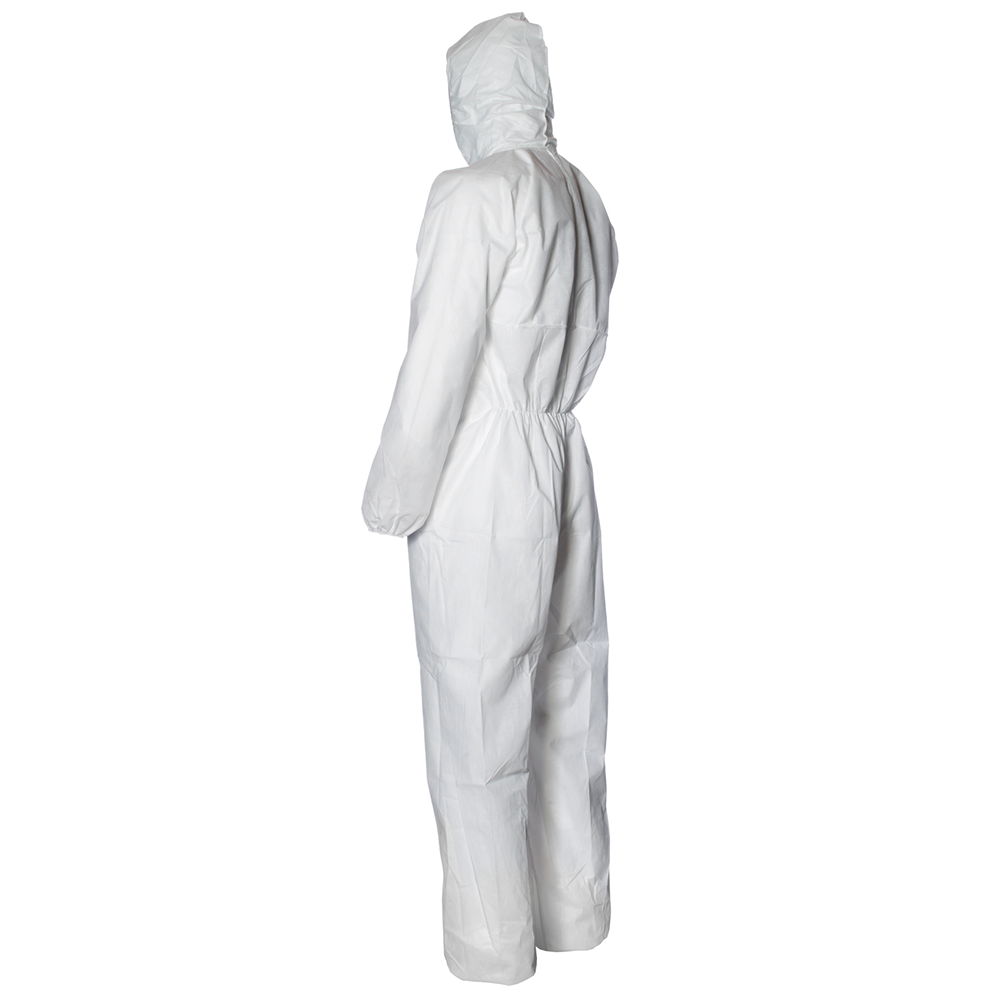

DuPont™ ProShield® 20 White. Hooded coverall. Stitched external seams. Elasticated wrists, ankles and face. Elasticated waist (stitched-in). Zipper flap. White.




Hover over image to zoom

CATIII

T5

T6

EN 1073-2

EN 1149-5

Name Description
Full Part Number PBCHF5SWH00
Fabric/Materials PROSHIELD®
Design Hooded coverall with elastics
Seam Stitched (external)
Color White
Sizes SM, MD, LG, XL, 2X, 3X, 4X
Quantity/Box 50 per box, individually packed

FEATURES & PRODUCT DETAILS

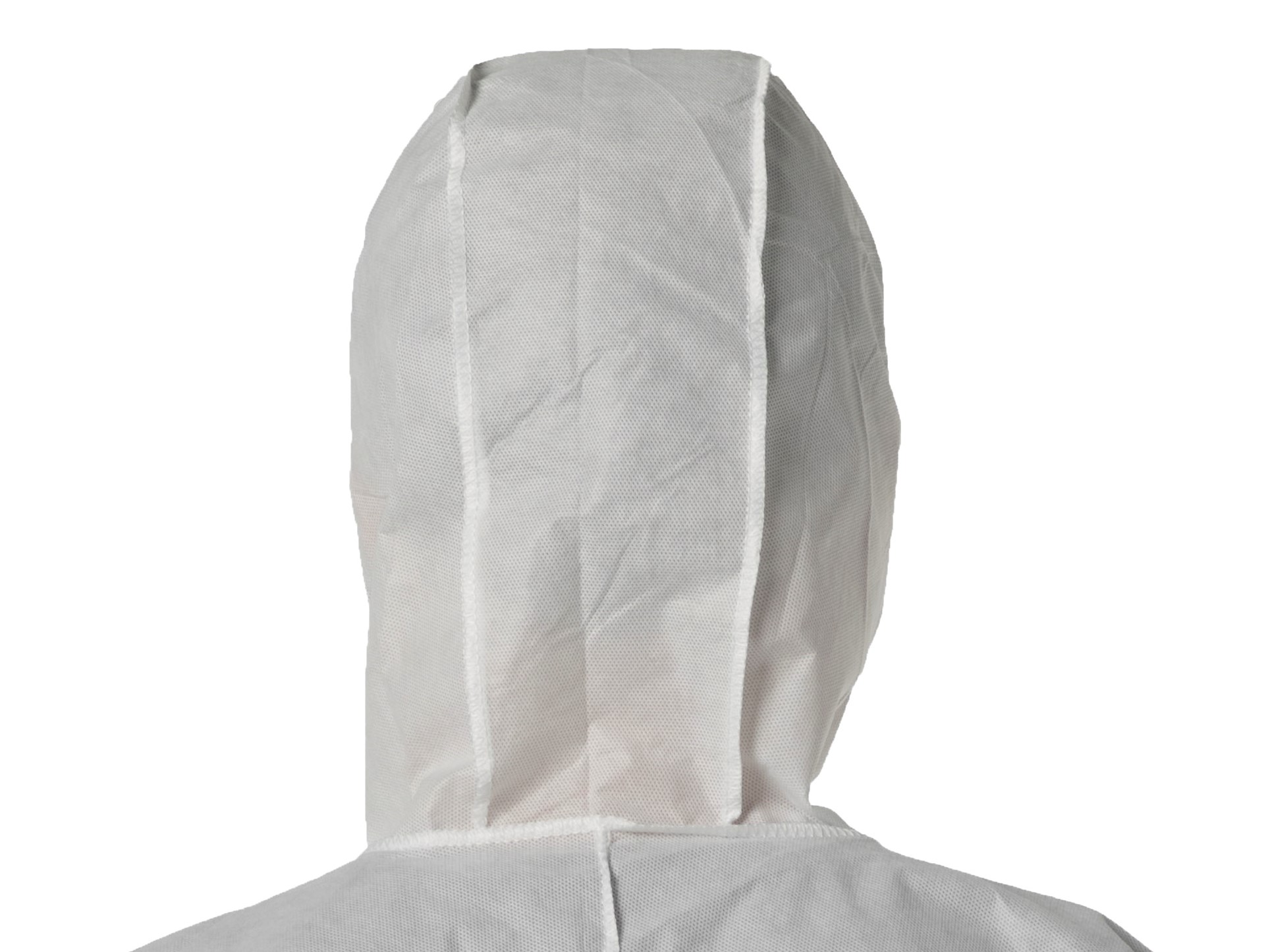

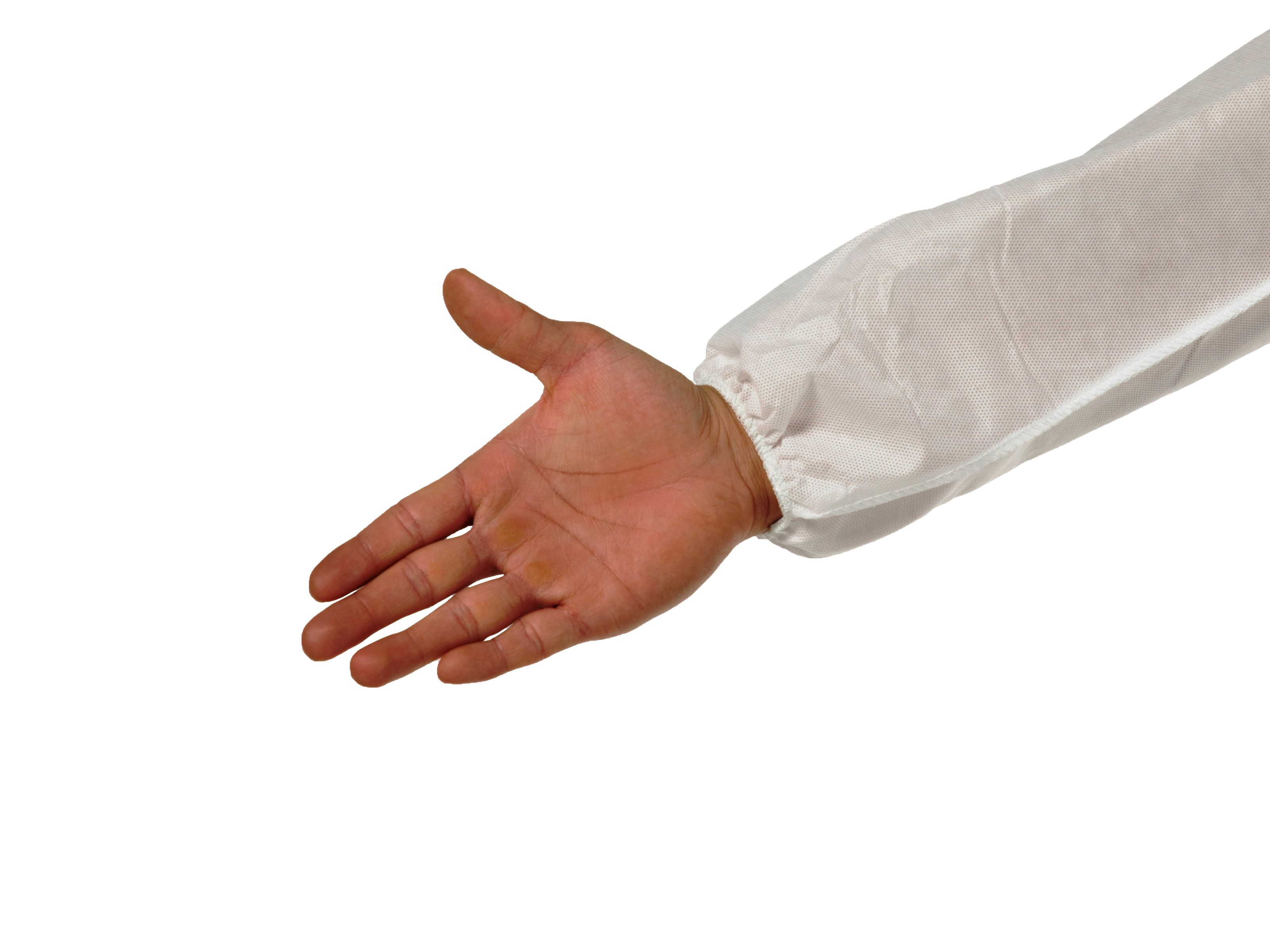

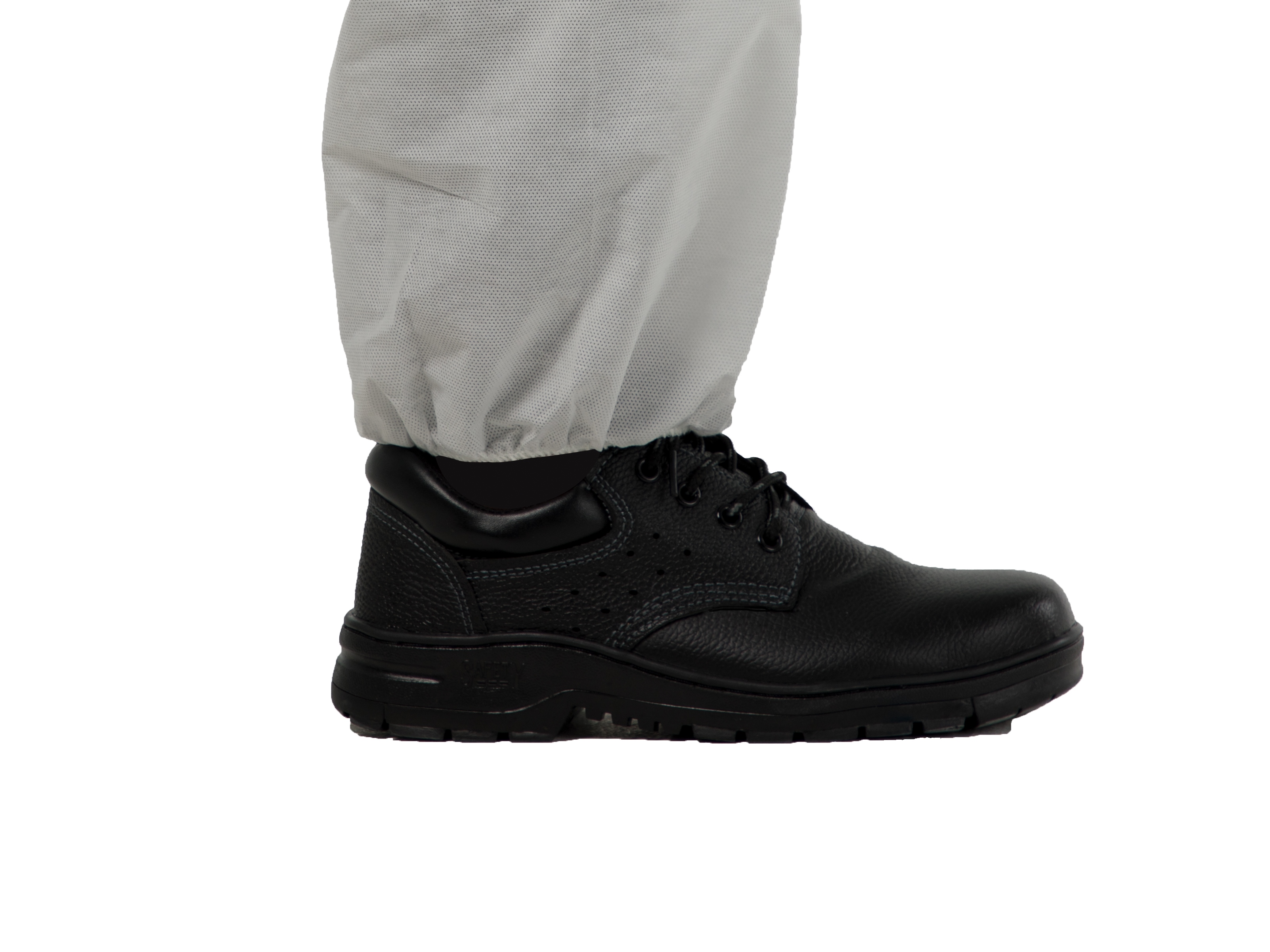

DuPont™ ProShield® 20 White. Hooded coverall available in white in sizes SM to 3X (a blue garment is also available). 2-piece hood. Elasticated face, wrists, waist and ankles.
ProShield® 20 garments, based on SMS fabric technology, are designed to protect workers from certain substances with a high level of comfort. They are typically used, depending on toxicity and exposure conditions, for protection against particles (Type 5), limited liquid splashes or sprays (Type 6).
ProShield® 20 garments are an ideal choice for workers seeking protection against dirt and grime during light duty work and other industries.

  • Certified according to Regulation (EU) 2016/425.
  • Chemical protective clothing, Category III, Type 5 and 6.
  • EN 1073-2 (protection against radioactive contamination)
  • Antistatic treatment (EN 1149-5) - on both sides.

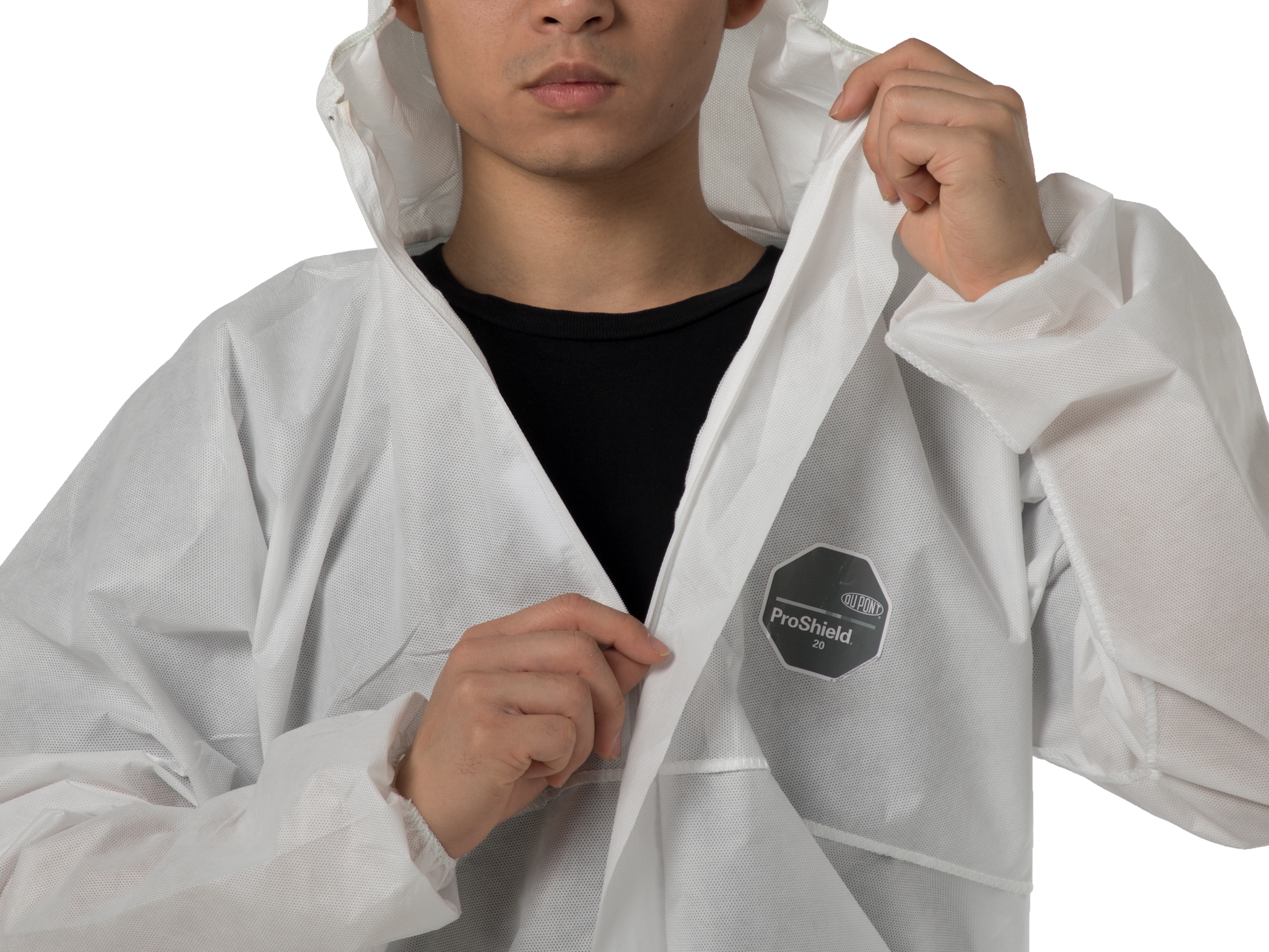

  • Nylon zipper and flap
  • Stitched external seams.

FINISHED DIMENSIONS

SIZES

Fabric & Permeation/Penetration Data

Physical Properties

Data relating to mechanical performance of the fabrics used in DuPont chemical protective clothing, listed for the selected garment according to the test methods and relevant European standard, if applicable. Such properties, including abrasion and flex-cracking resistance, tensile strength and puncture resistance can help in the assessment of protective performance.

Property Test Method Typical Result EN
Abrasion Resistance 7 EN 530 Method 2 >10 cycles 1 of 6 1
Basis Weight DIN EN ISO 536 43 g/m2 N/A
Colour. N/A (598) White N/A
Puncture Resistance EN 863 >5 N 1 of 6 1
Resistance to water penetration DIN EN 20811 3 kPa N/A
Resistenza alla rottura per flessione 7 EN ISO 7854 Method B >1000 cycles 1 of 6 1
Surface Resistance at RH 25%, inside 7 EN 1149-1 < 2,5 • 109 Ohm N/A
Surface Resistance at RH 25%, outside 7 EN 1149-1 < 2,5 • 109 Ohm N/A
Tensile Strength (MD) DIN EN ISO 13934-1 >30 N 1 of 6 1
Tensile Strength (XD) DIN EN ISO 13934-1 >30 N 1 of 6 1
Trapezoidal Tear Resistance (MD) EN ISO 9073-4 >10 N 1 of 6 1
Trapezoidal Tear Resistance (XD) EN ISO 9073-4 >10 N 1 of 6 1
  •  According to EN 14325
  •  According to EN 14126
  •  According to EN 1073-2
  •  According to EN 14116
  •   According to EN 11612
  •  Front Tyvek ® / Back
  •  Based on test according to ASTM D-572
  •  See Instructions for Use for further information, limitations and warnings
  •  Larger than
  •  Smaller than
  •  Smaller than or equal to
  •  Not Applicable
  •  Standard Deviation

GARMENT PERFORMANCE

PENETRATION AND REPELLENCY
