Tyvek / Tychem® 2000

Model TC198T YL

Tychem® 2000

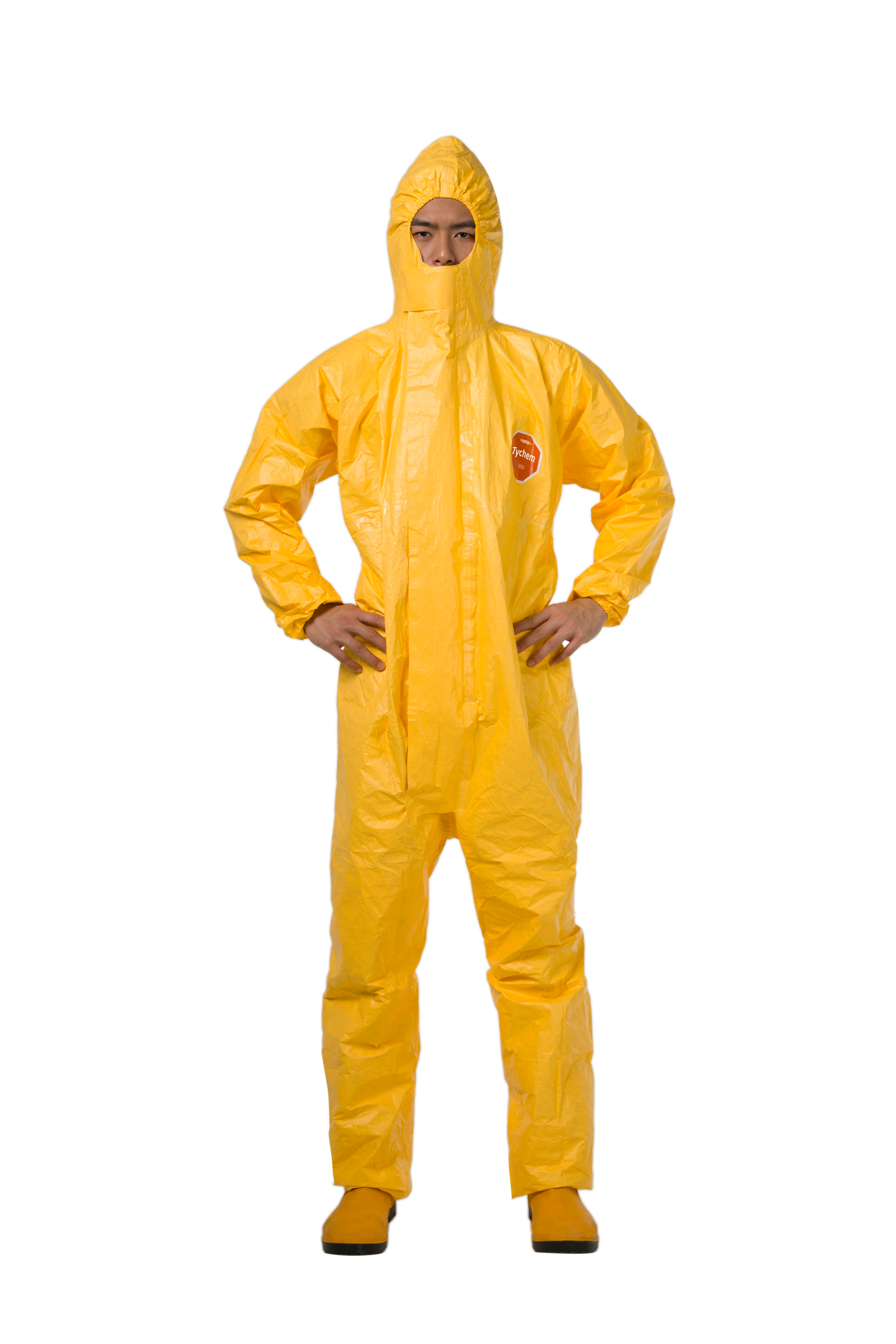

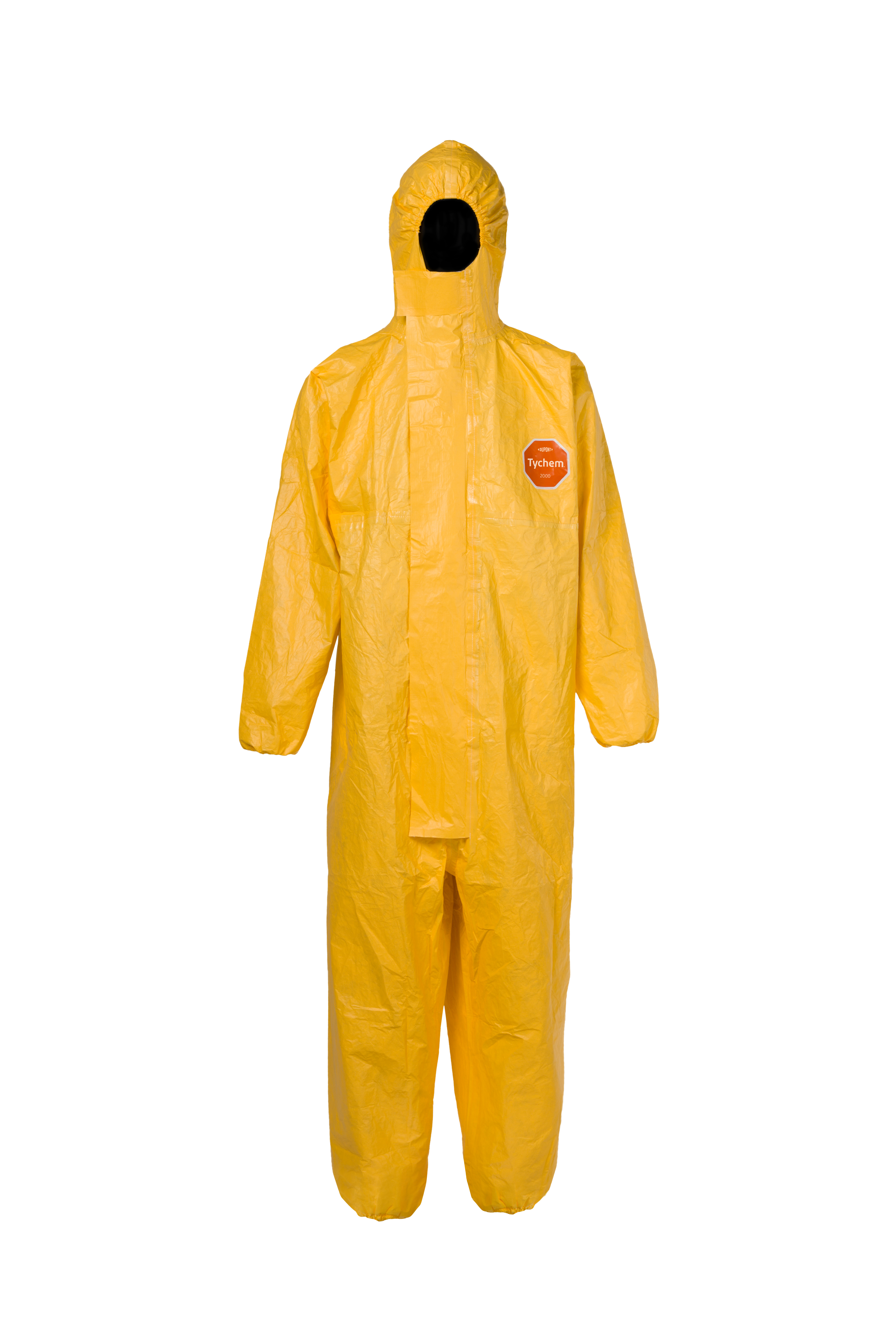

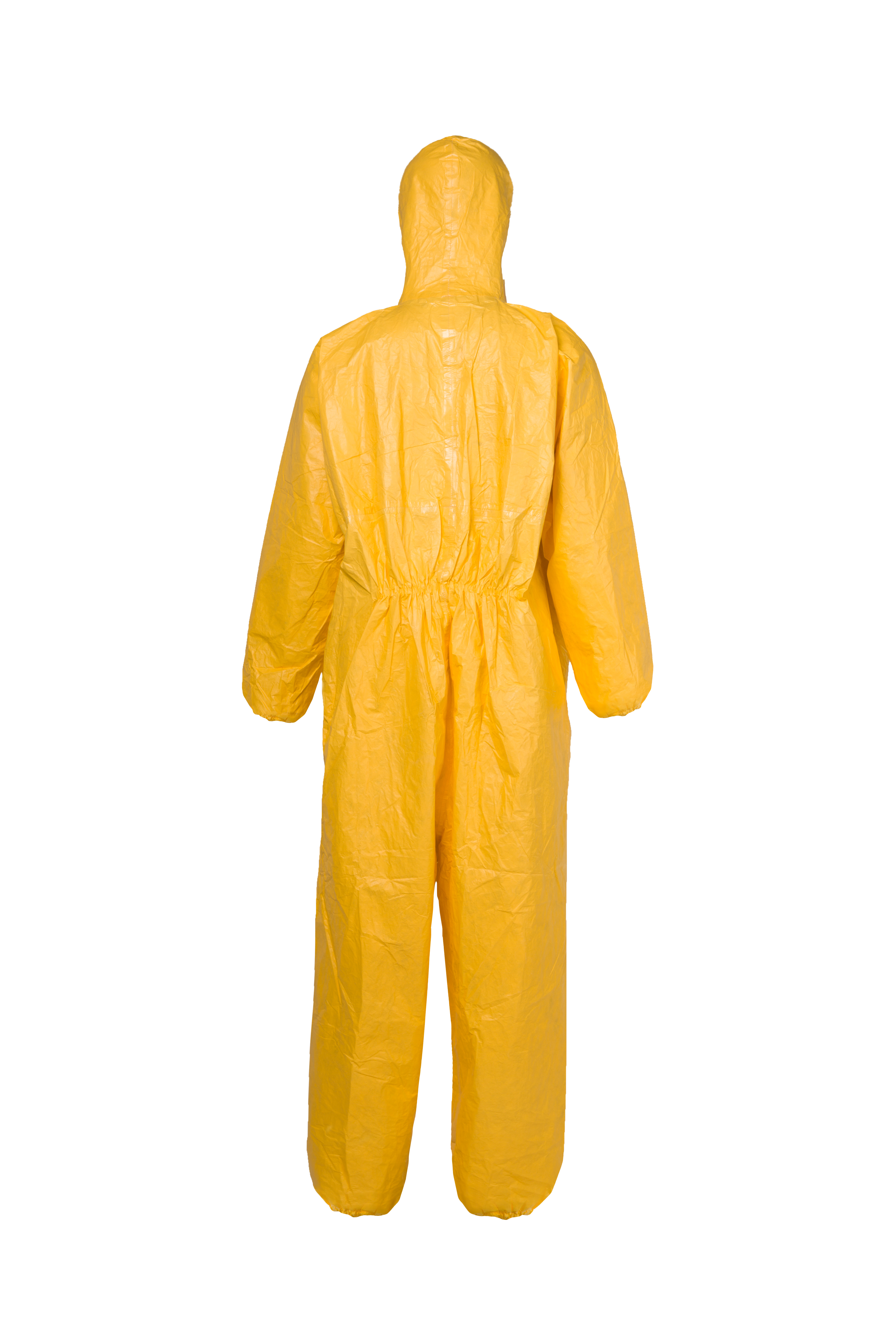

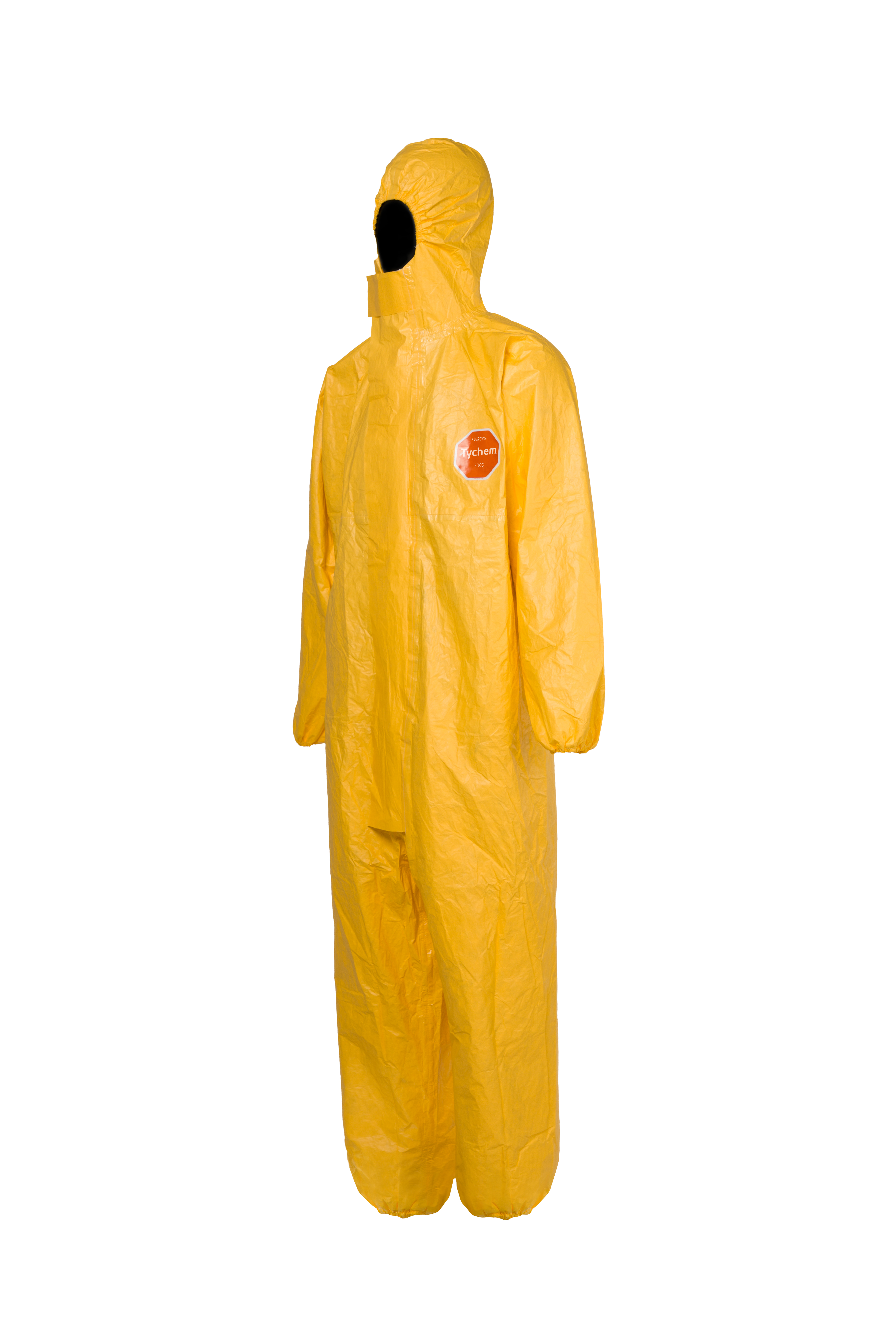

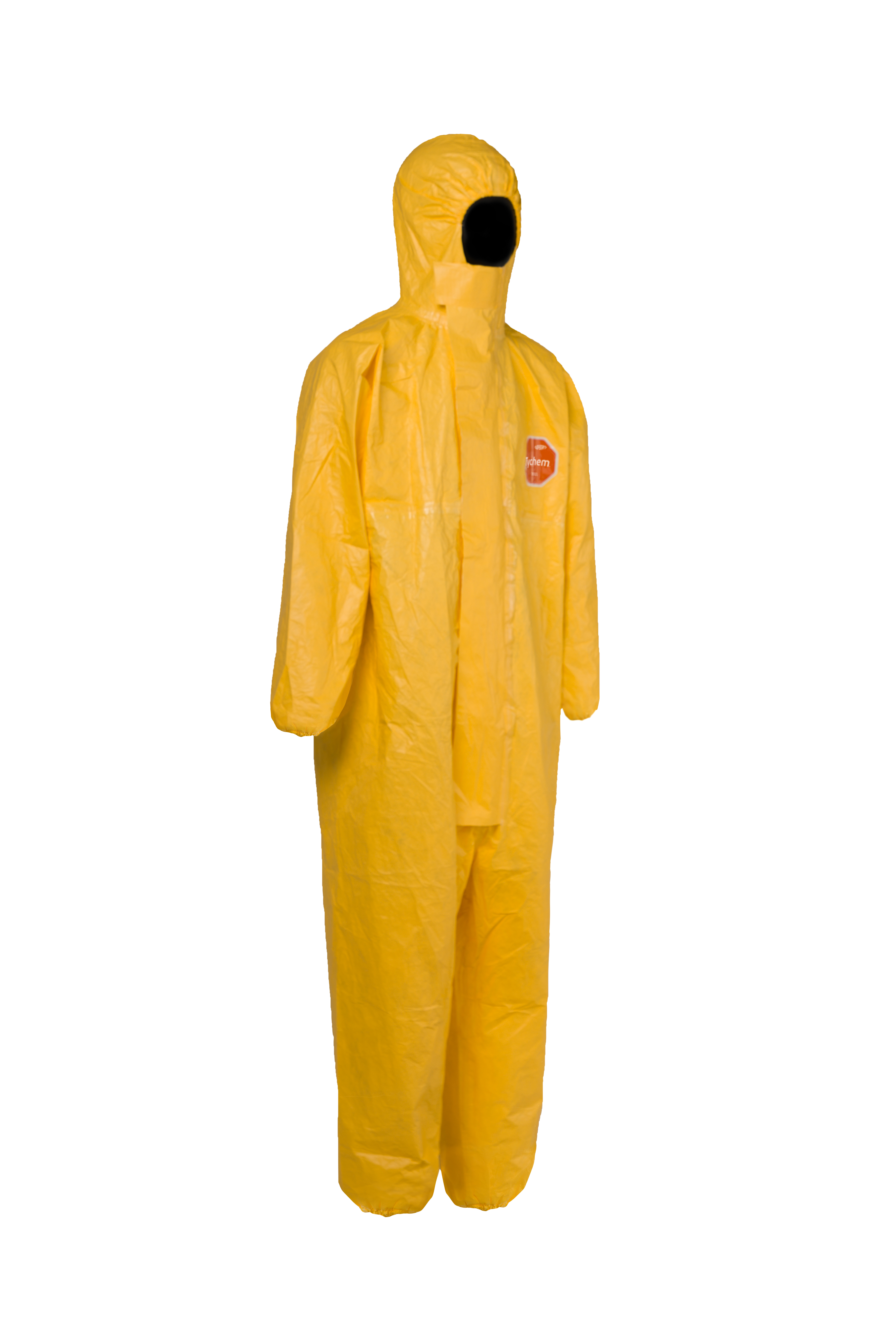

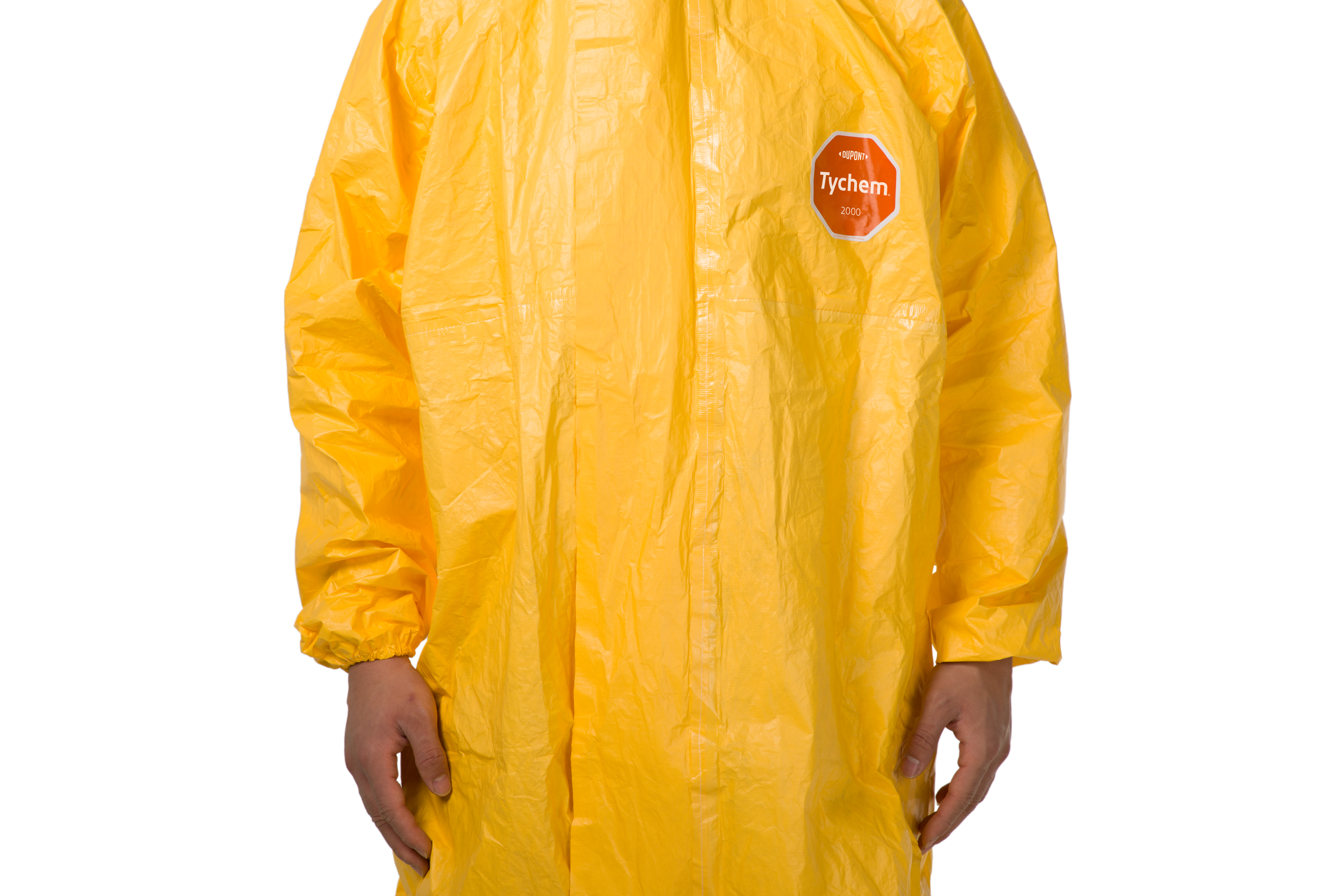

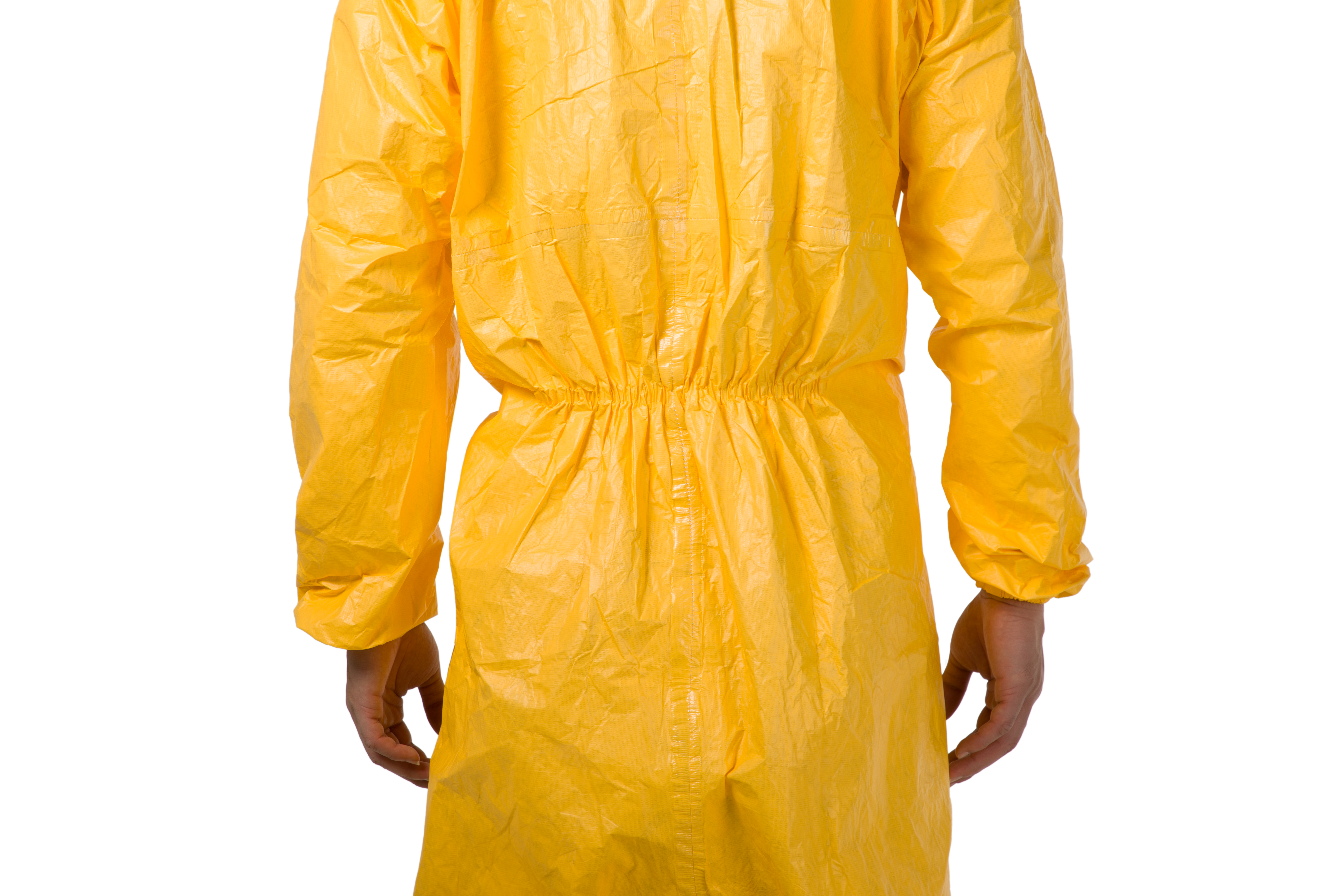

DuPont™ Tychem® 2000, model TY198S WH. Hooded coverall. Stitched and over-taped seams. Elastication at wrists, ankles, face and waist. Self-adhesive double zipper flap and chin flap. Yellow.




Hover over image to zoom

CATIII

T3

T4

T5

T6

EN 1073-2

EN 1149-1

EN 14126

Name Description
Full Part Number TCCHA5TYLA0
Fabric / Material Tychem® 2000 C
Design Hooded coverall with elastics
Seam Stitched and over-taped
Color Yellow
Sizes SM,MD,LG,XL,2XL,3XL
Quantity/Box 50 per box, individually packed

FEATURES & PRODUCT DETAILS

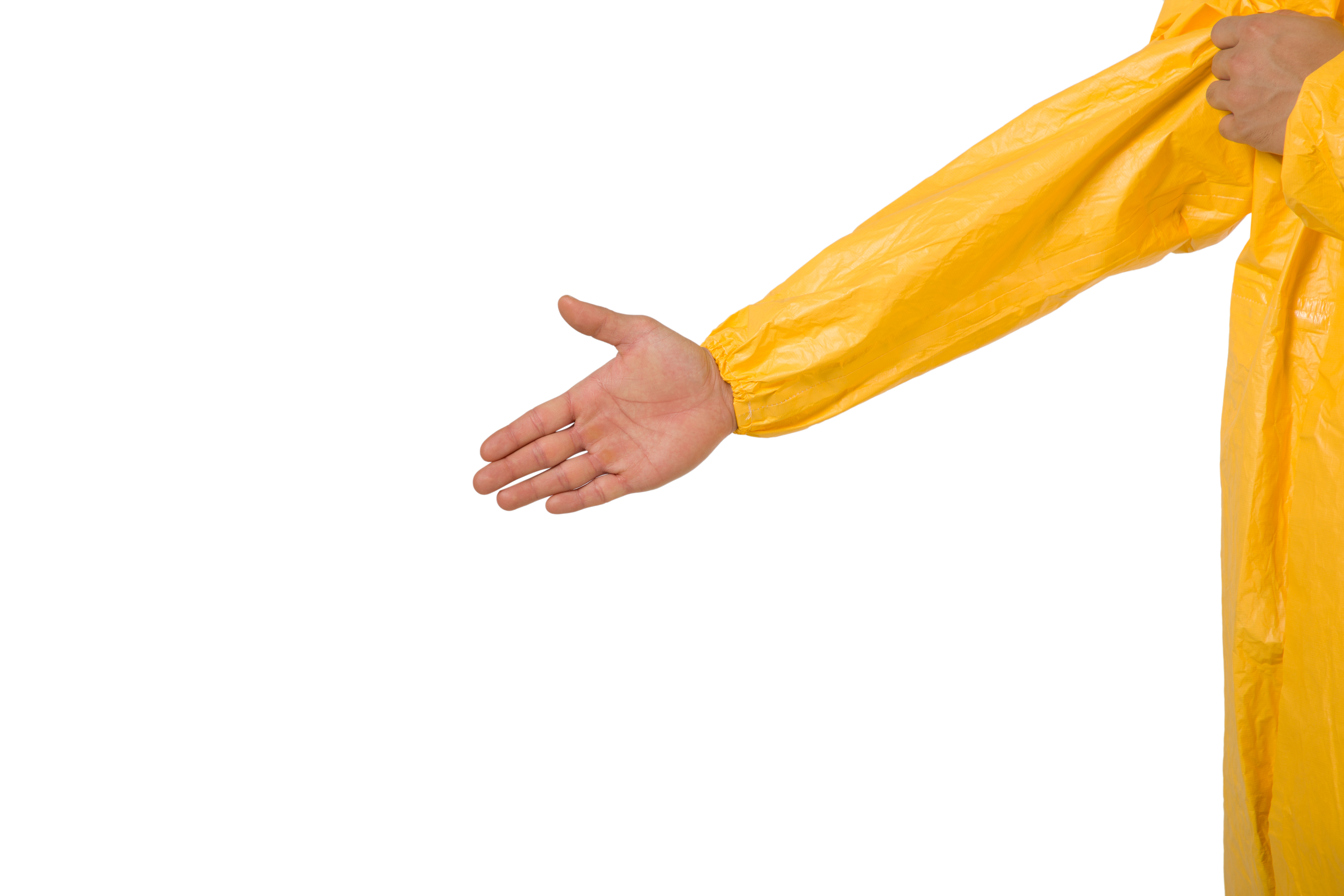

DuPont™ Tychem® 2000, model TC198T YL. Hooded coverall. Available in bright yellow for high visibility and in sizes SM-3XL. Stitched and over-taped seams. Elasticated face, wrists, waist and ankles for an optimal fit. Self-adhesive chin flap for tight seal of suit to face-masks.
Made from a lightweight and durable fabric (<450g per garment), Tychem® 2000 garments utilise the strength of Tyvek® and a polymeric barrier coating to offer good permeation barrier protection against a wide range of inorganic chemicals and biological hazards (even under pressure).
Tychem® 2000 is used for splash or pressurised splash protection in a variety of industrial environments, including pulp and paper manufacturing, food processing, chemical processing and pharmaceutical manufacturing.

  • Limited-Use protective clothing, Type 3-B, 4-B, 5-B and 6-B Protection
  • EN 14126 (barrier to infective agents), EN 1073-2 (protection against radioactive contamination)
  • Antistatic treatment (EN 1149-1) - on inside
  • Stitched and over-taped seams with barrier tape for protection and strength
  • Self-adhesive double zipper flap closure system for higher protection

ADDITIONAL EQUIPMENT NEEDED

SIZES

Fabric & Permeation/Penetration Data

Physical Properties

Data relating to mechanical performance of the fabrics used in DuPont chemical protective clothing, listed for the selected garment according to the test methods and relevant European standard, if applicable. Such properties, including abrasion and flex-cracking resistance, tensile strength and puncture resistance can help in the assessment of protective performance.

Property Test Method Typical Result EN
Abrasion Resistance 7 EN 530 Method 2 >1500 cycles 5 of 6 1
Basis Weight DIN EN ISO 536 83g/m2 N/A
Bursting Strength (Mullenburst) ISO 2758 475 kPa N/A
Colour N/A Yellow N/A
Exposure to high Temperature N/A Garments seams opens at ˜98℃ N/A
Exposure to low Temperature N/A Flexibility retained down to -73℃ N/A
Flex Cracking Resistance 7 EN ISO 7854 Method B >5000 cycles 3 of 6 1
Flex Cracking Resistance at -30 ℃ EN ISO 7854 Method B >500 cycles N/A
Puncture Resistance EN 863 18 N 2 of 6 1
Resistance to Ignition 7 EN 13274-4 Method 3 No after flame, no drop formation, hole formation N/A
Resistance to Water Penetration DIN EN 20811 >30 kPa N/A
Surface Resistance at RH 25% 7 EN 1149-1 ≤ 2,5x109 Ohm N/A
Surface Resistance at RH 25%, outside 7 EN 1149-1 No antistatic treatment N/A
Tensile Strength (MD) DIN EN ISO 13934-1 160 N 3 of 6 1
Tensile Strength (XD) DIN EN ISO 13934-1 150 N 3 of 6 1
Thickness DIN EN ISO 534 180 µm N/A
Trapezoidal Tear Resistance (MD) EN ISO 9073-4 35 N 1 of 6 1
Trapezoidal Tear Resistance (XD) EN ISO 9073-4 30 N 1 of 6 1
  •  According to EN 14325
  •  According to EN 14126
  •  According to EN 1073-2
  •  According to EN 14116
  •   According to EN 11612
  •  Front Tyvek ® / Back
  •  Based on test according to ASTM D-572
  •  See Instructions for Use for further information, limitations and warnings
  •  Larger than
  •  Smaller than
  •  Not Applicable
  •  Standard Deviation

GARMENT PERFORMANCE

PERMEATION DATA

COMFORT

PENETRATION AND REPELLENCY

BIOLOGICAL BARRIER

Warnings
