Tyvek / Tychem® 6000 FR

TP198T OR

Tychem® 6000 FR

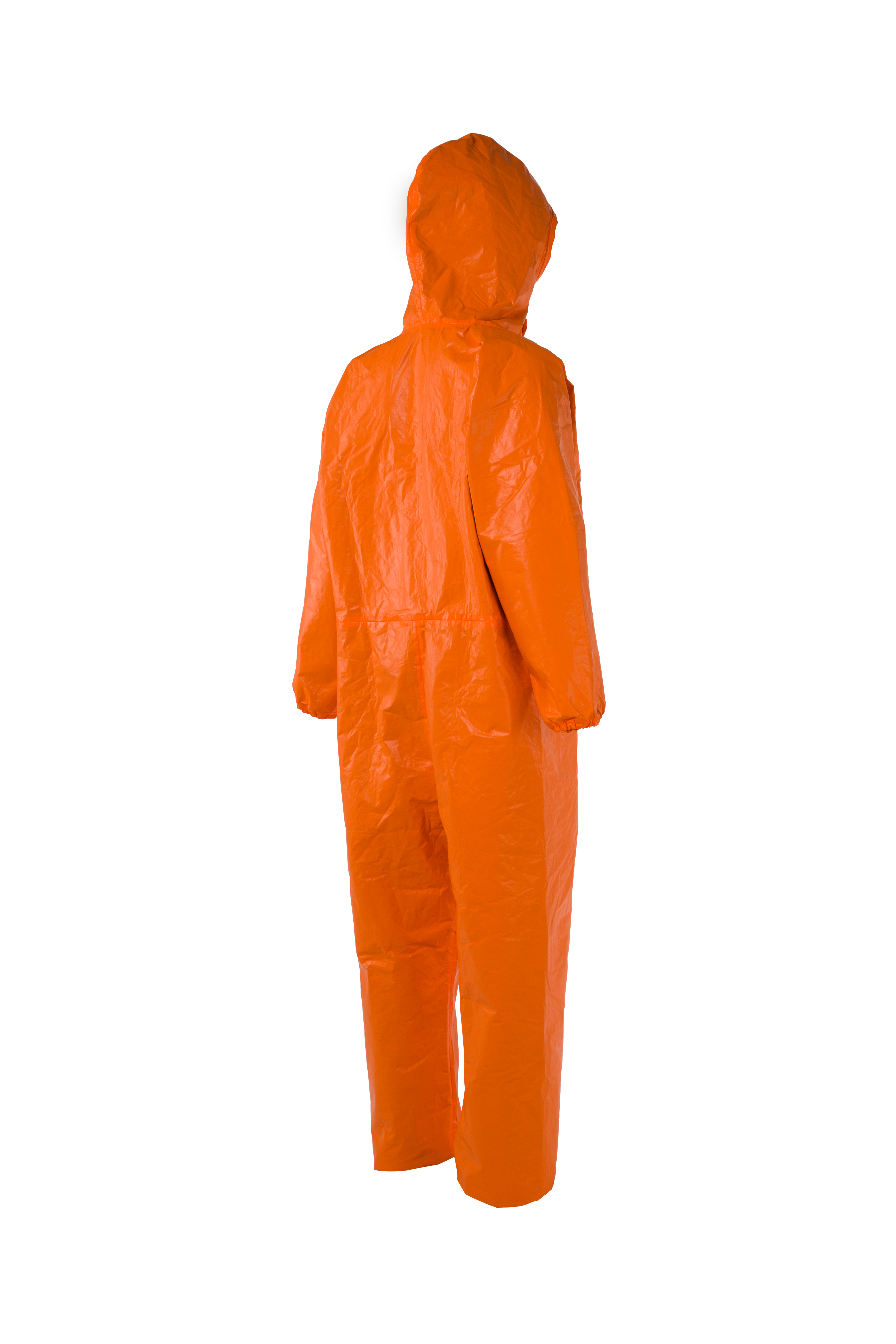

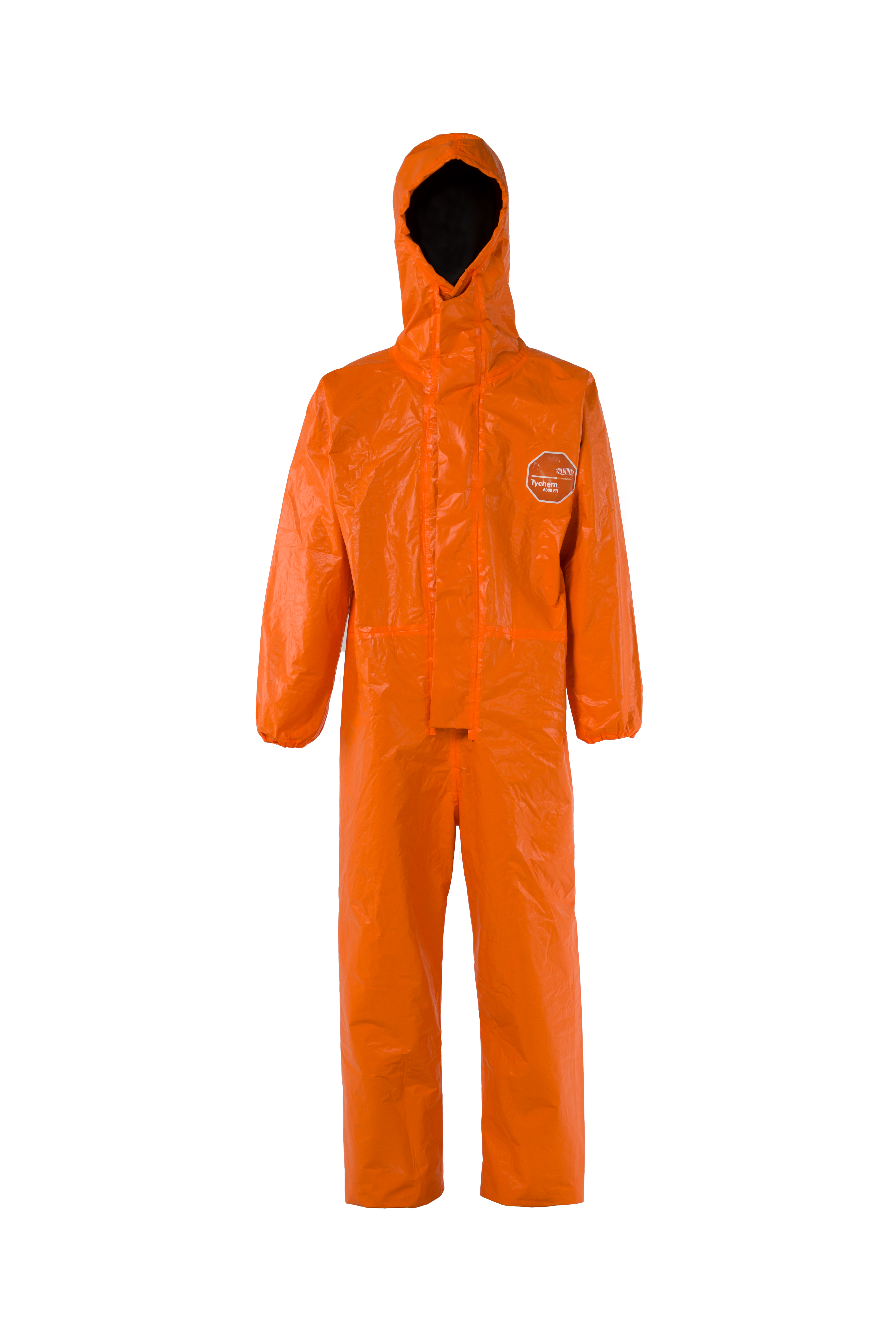

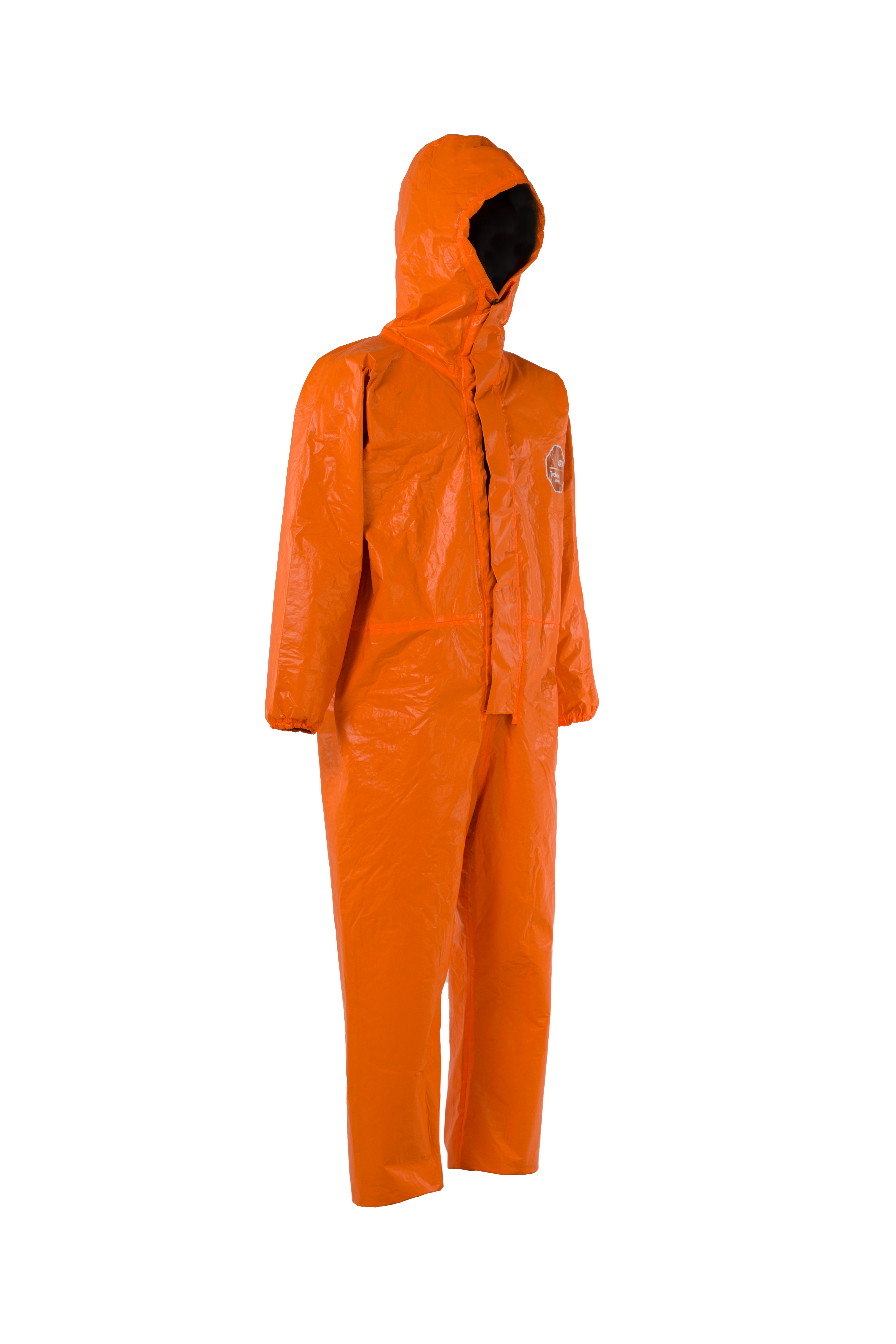

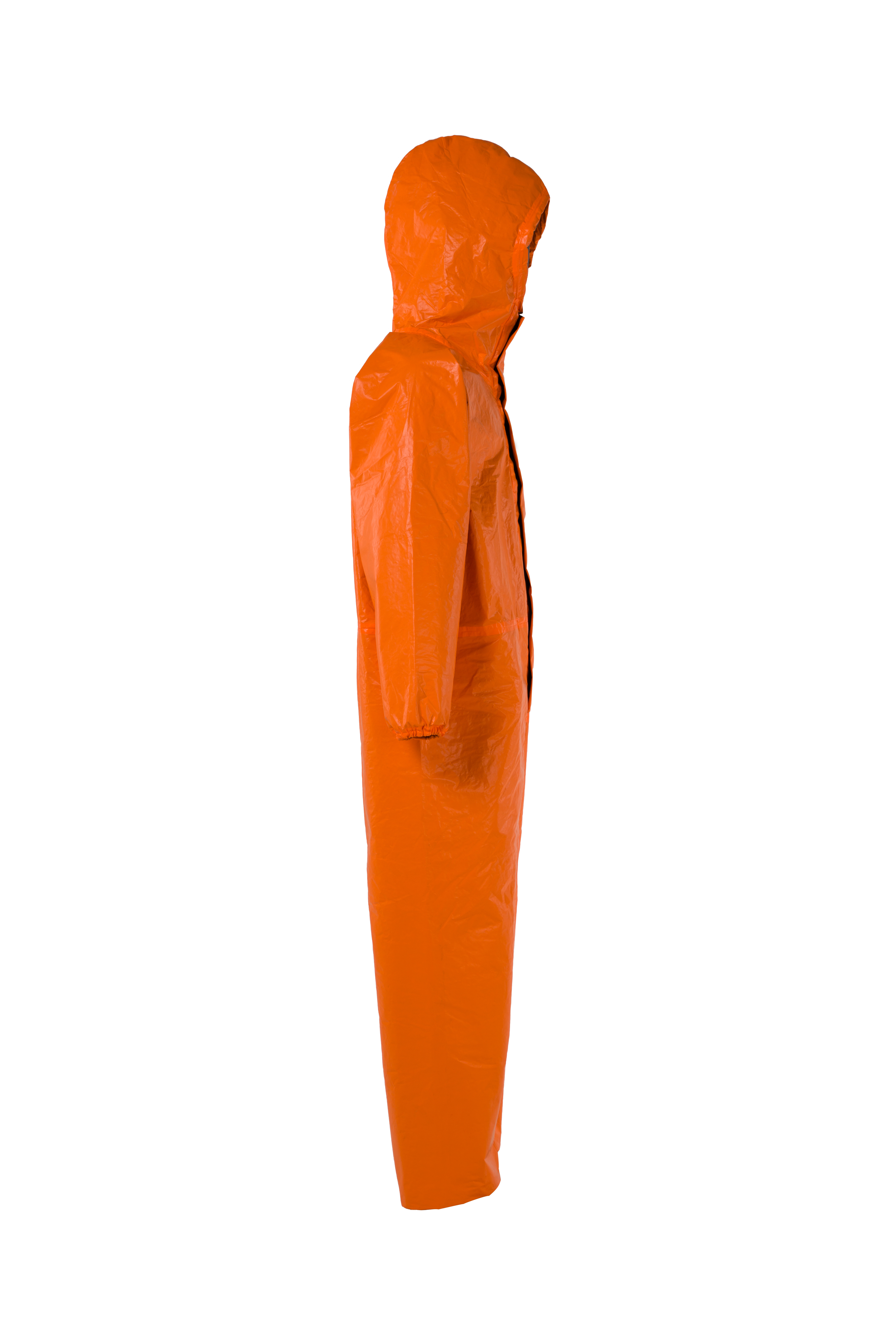

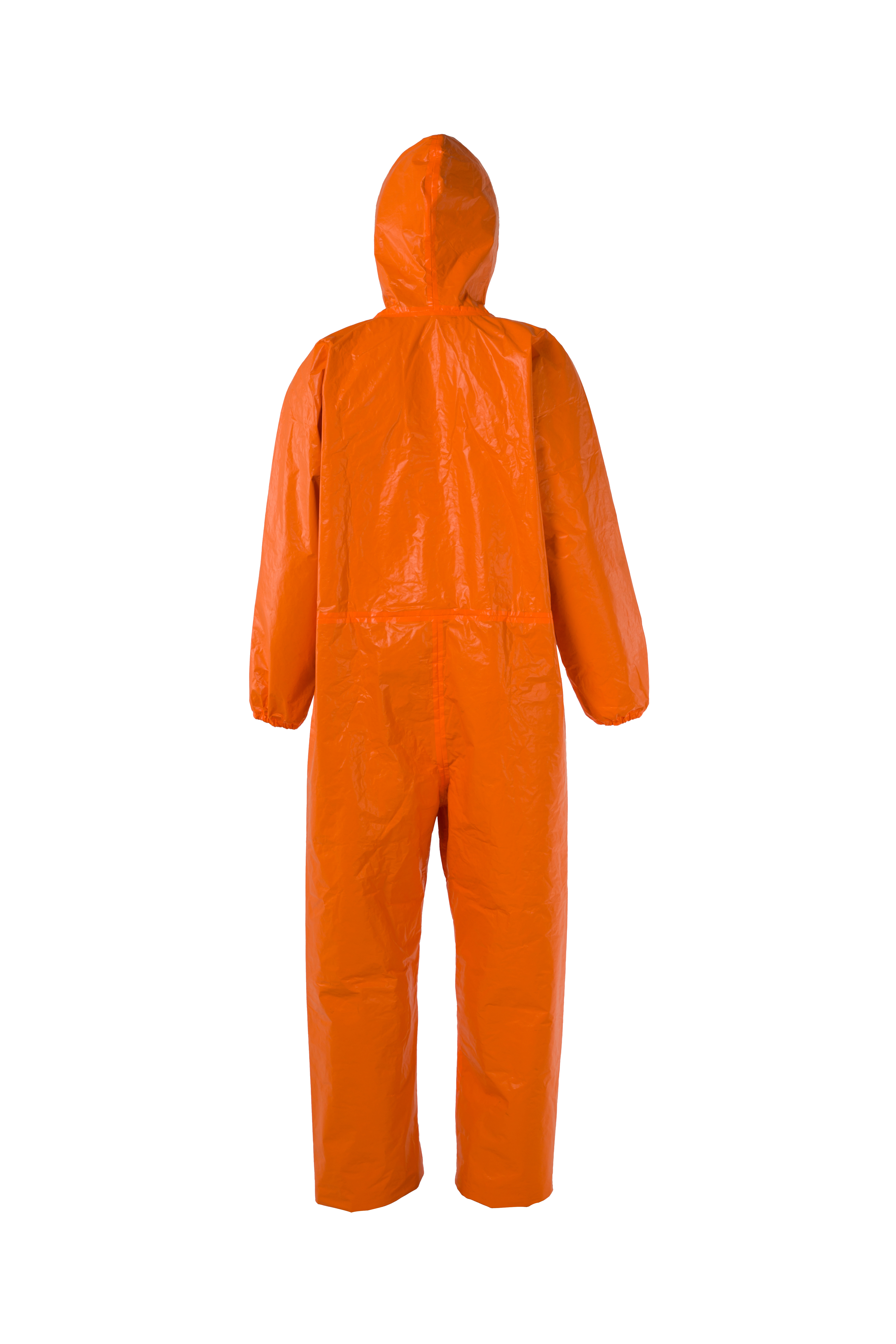

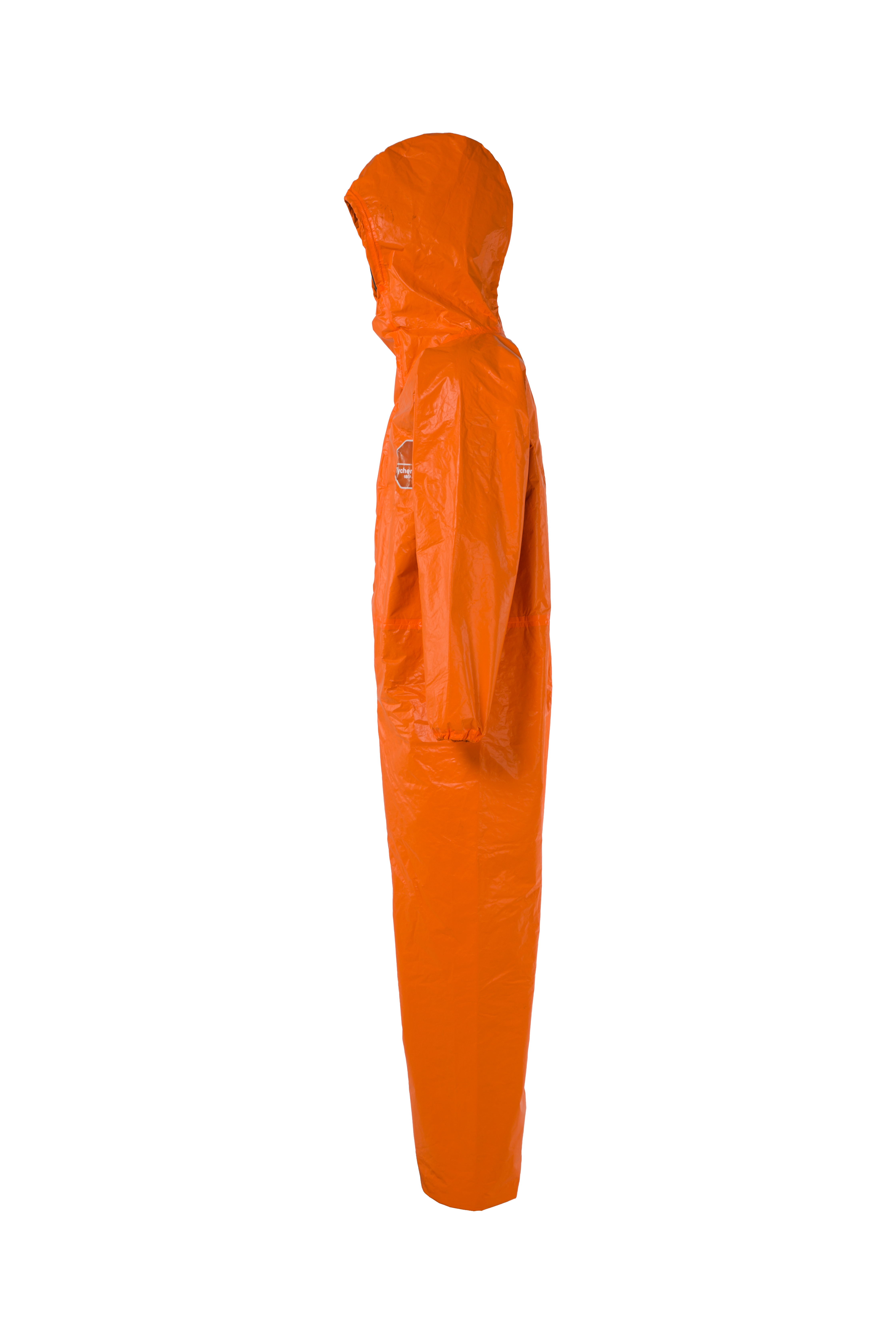

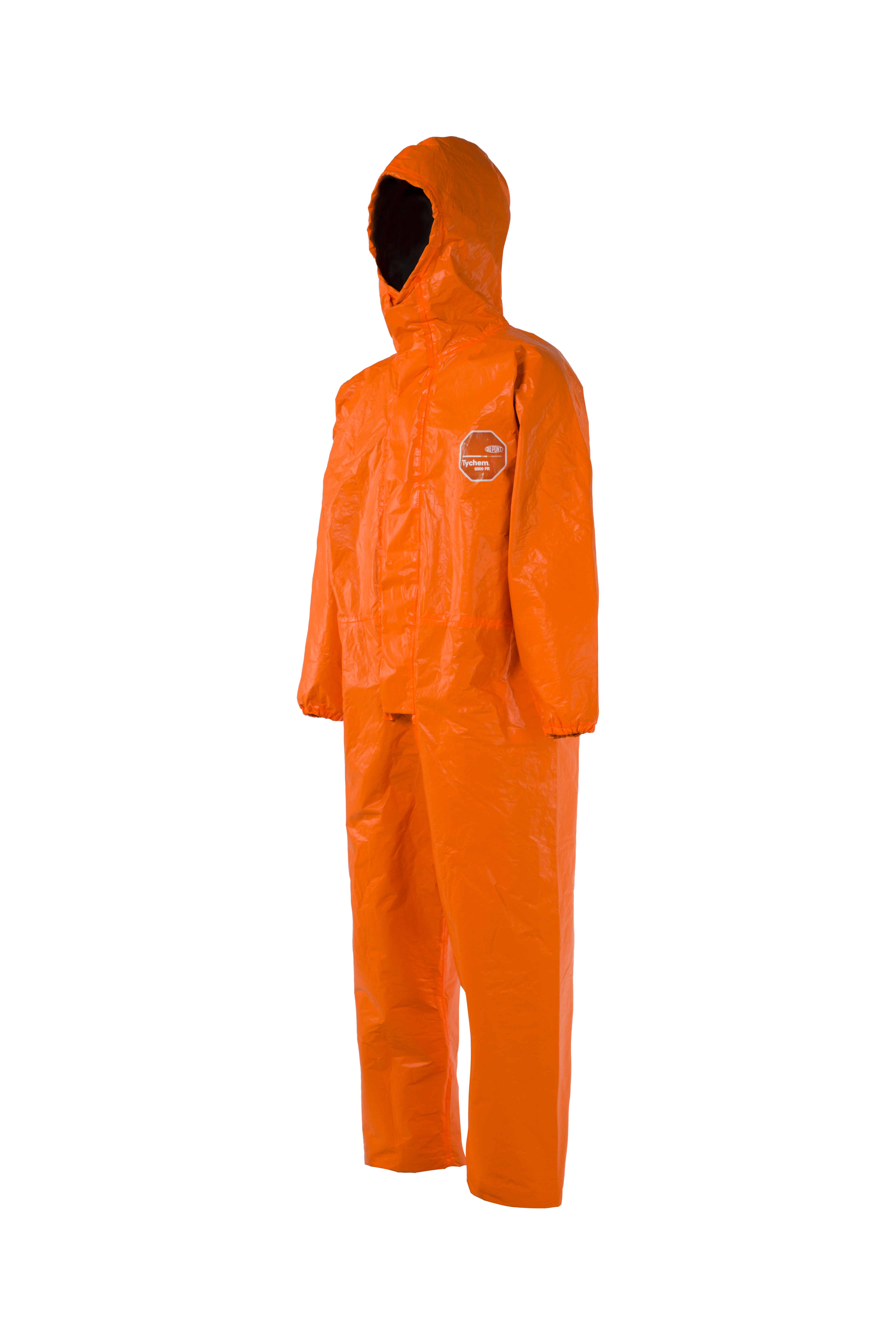

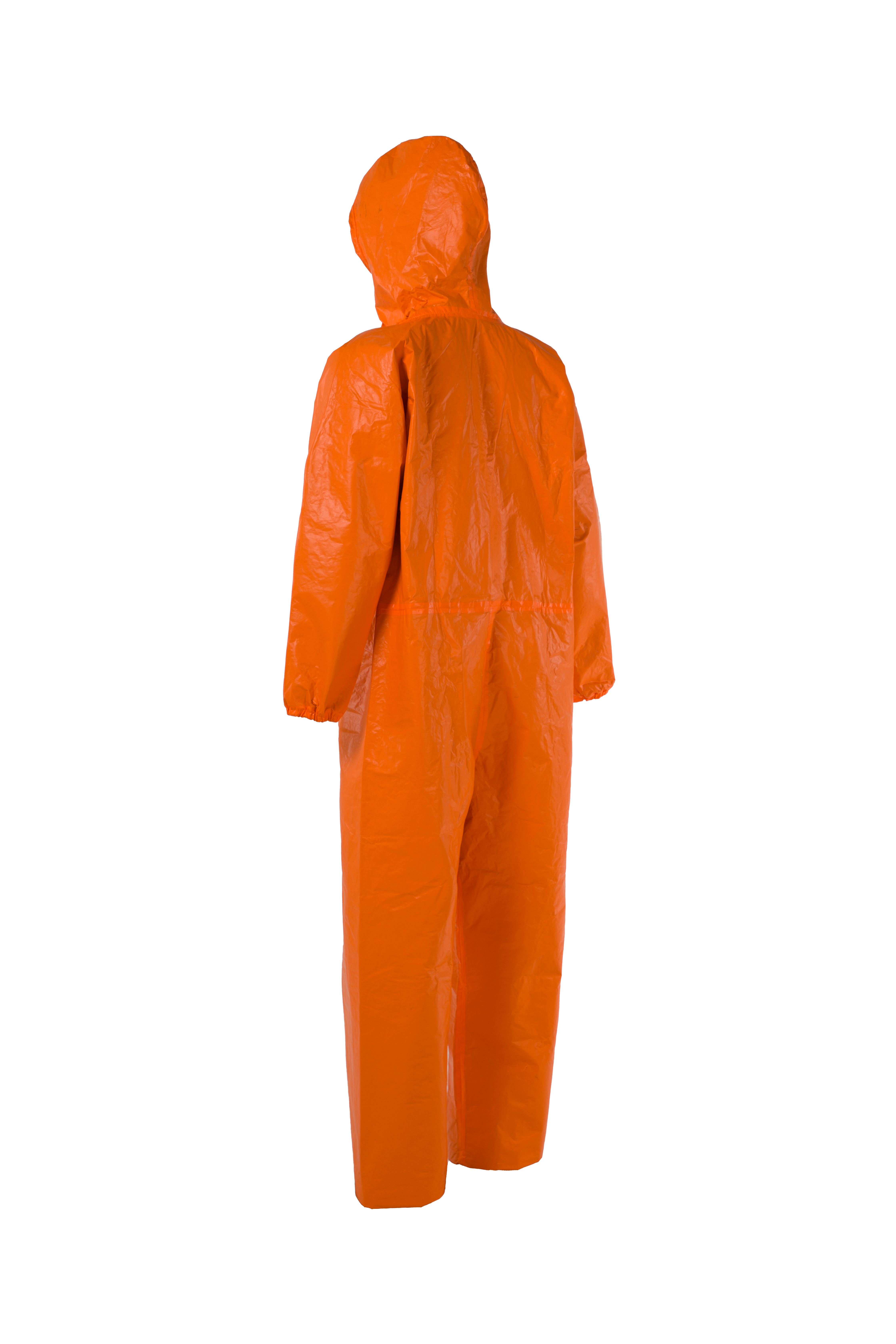

DuPont™ Tychem® 6000 FR Coverall. Certified to NFPA 1992 and the Category 2 Requirements of NFPA 70E. Respirator Fit, Drawstring Hood. Elastic Wrists. Open Ankles. Double Storm Flap with Hook & Loop Closure. Taped Seams. Orange.




Hover over image to zoom

CATIII

Name Description
Full Part Number TP198TORxx0002yy (xx=size;yy=option code)  Help
Fabric/Materials TYCHEM® 6000FR
Design Coverall w/ Resp. Fit Hood, Elastic Wrists, Open Ankles. Certified to NFPA 1992 and the HRC 2 Requirements of NFPA 70E
Color Orange
Sizes SM,MD,LG,XL,2X,3X,4X,5X
Quantity/Box 2 per case

FEATURES & PRODUCT DETAILS

Tychem® 6000 FR offers a single layer garment that provides triple hazard protection from liquid-chemical splash, flash fire and electric arc. Tychem® ThermoPro garments are designed to combine the trusted chemical protection of Tychem® and thermal/arc protection of Nomex® into a single layer garment. Tychem® ThermoPro garments are designed to help provide industrial workers and Hazmat responders with permeation protection against a broad range of toxic industrial chemicals and chemical warfare agents and to provide escape time from flash fires and protection from electric arc. Tychem® ThermoPro fabric provides at least eight hours breakthrough protection against 20 of the 21 standard ASTM F1001 chemicals and at least 30 minutes of protection for more than 180 chemical challenges including chemical warfare agents. The arc rating of Tychem® ThermoPro fabric is 15 cal/cm² Ebt. This exceeds the NFPA 70E Hazard Risk Category 2 requirement of 8 cal/cm². Typical Applications: HazMat Teams in Fire Departments, Industrial Fire Brigades, Clandestine Lab Investigation, Industrial Chemical Processing Plants, Laboratories.

  • Certified to NFPA 1992 (2018)

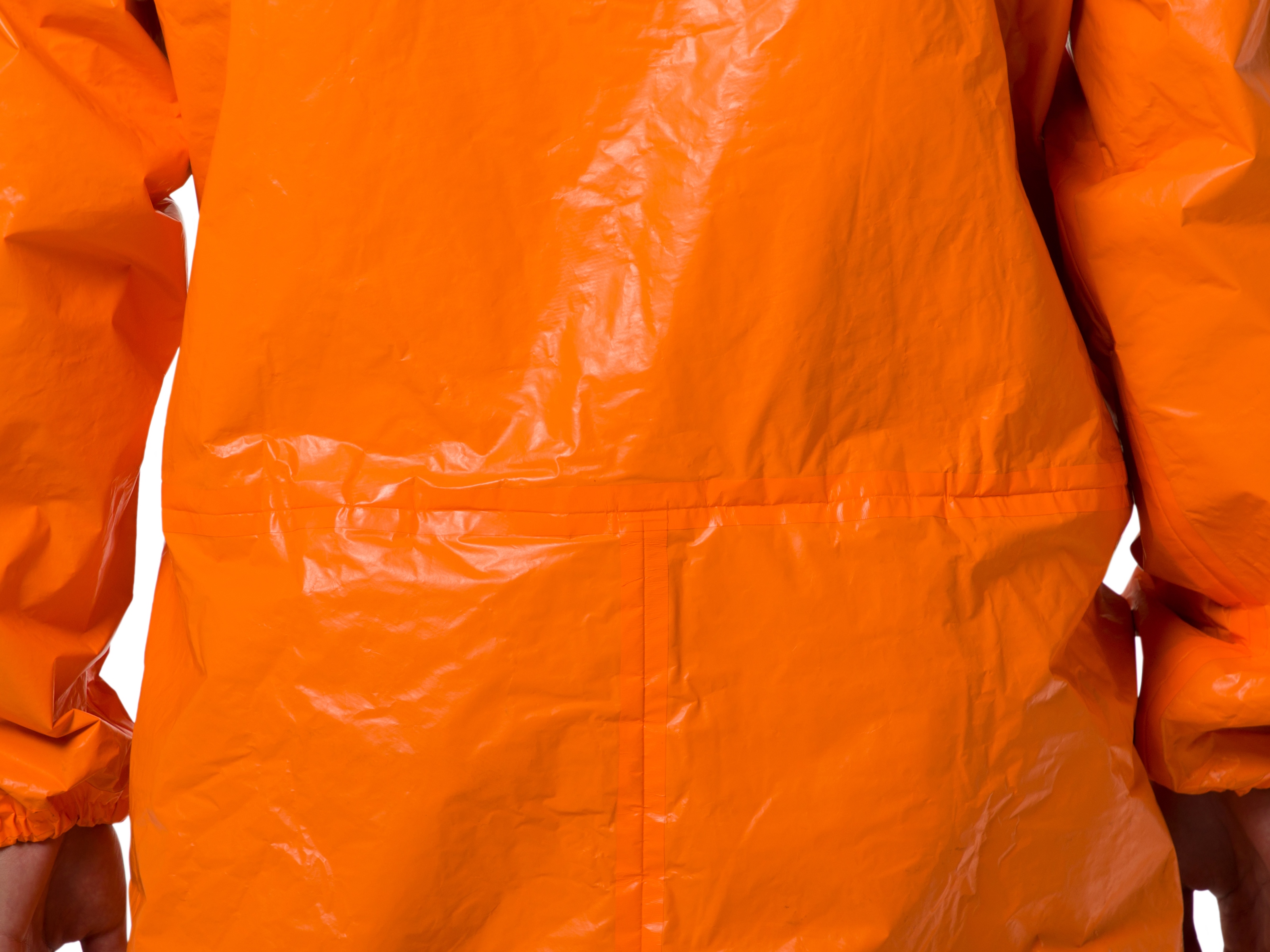

  • Taped seams provide strong chemical resistance against heavy liquid splashes. A sewn seam is covered with a strip of compatible chemical-resistant material through heat sealing.

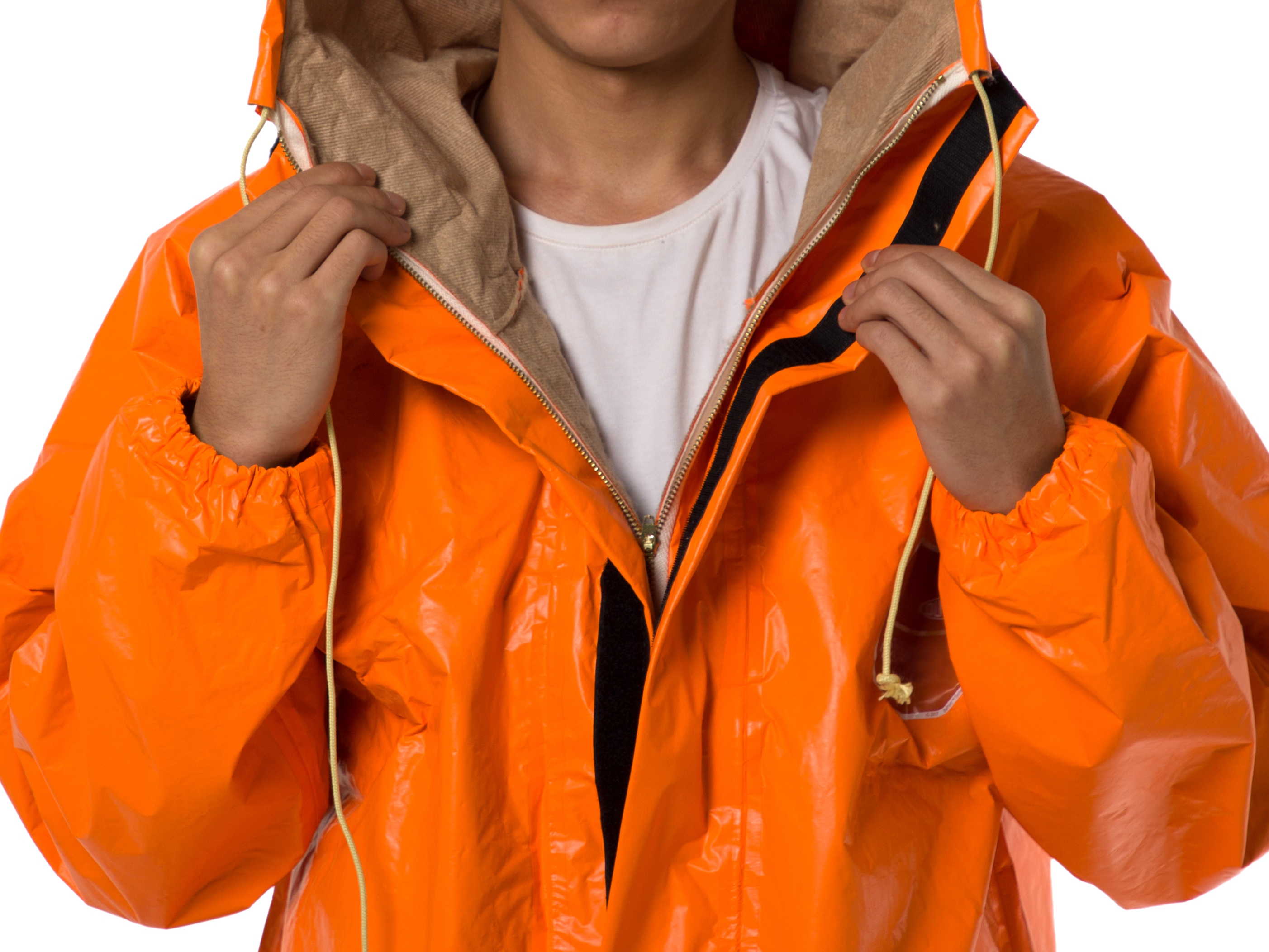

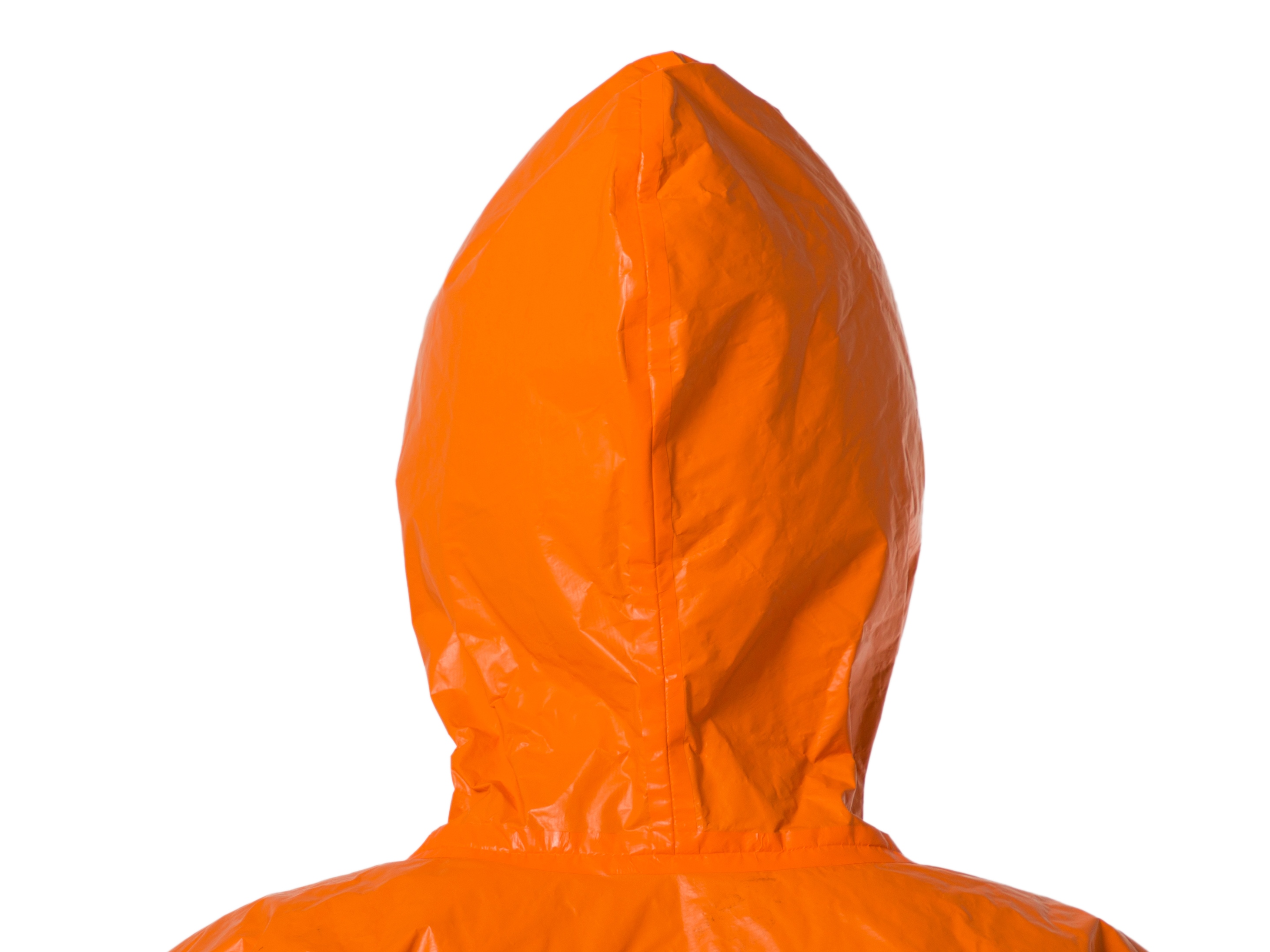

  • Attached respirator-fit hood with drawstring to pull tightly around respirator; longer zipper extends to chin for complete coverage of neck area.

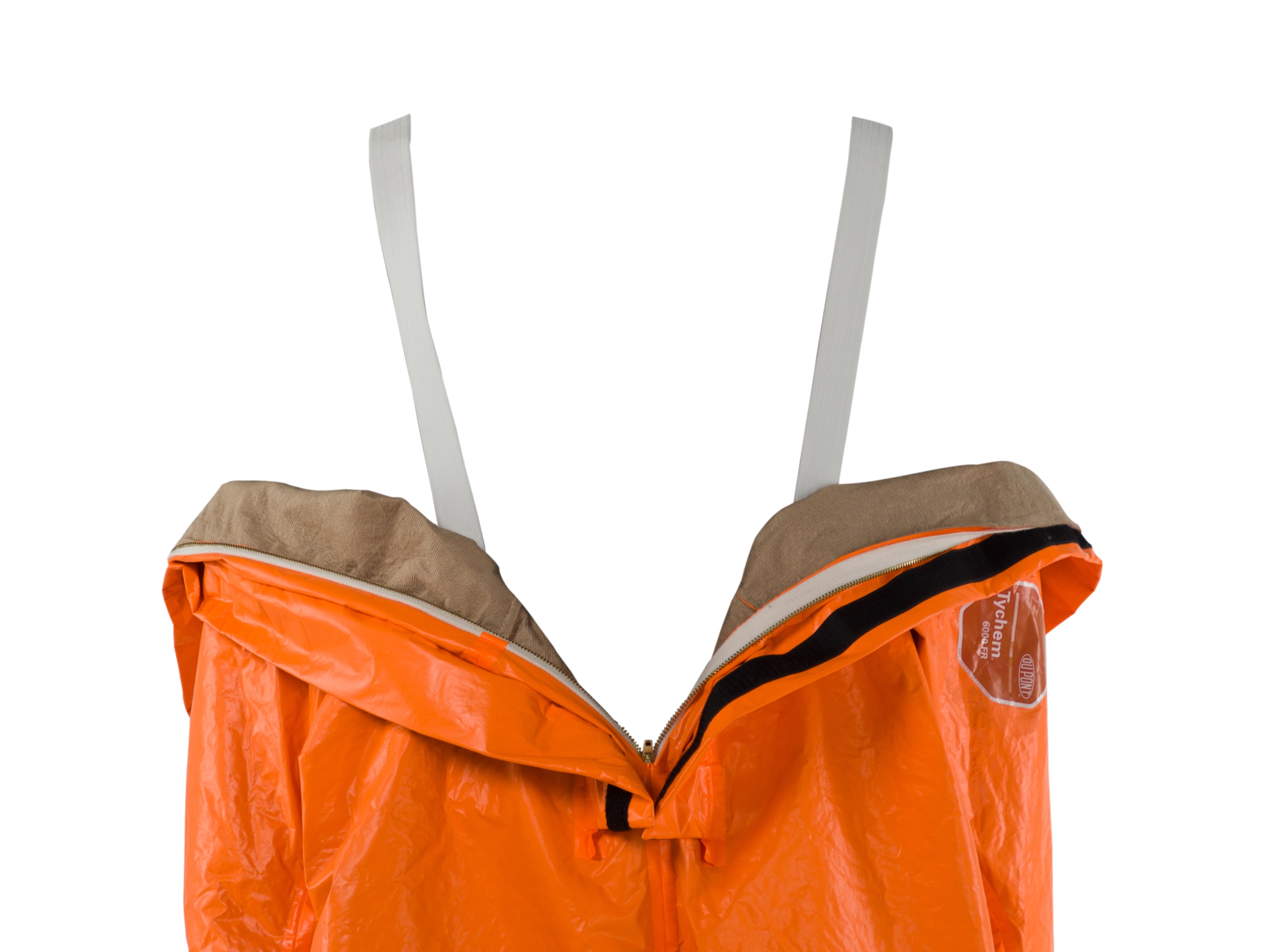

  • Storm flap covers zipper which can be secured by the wearer with rugged hook and loop material to prevent intrusion at zipper

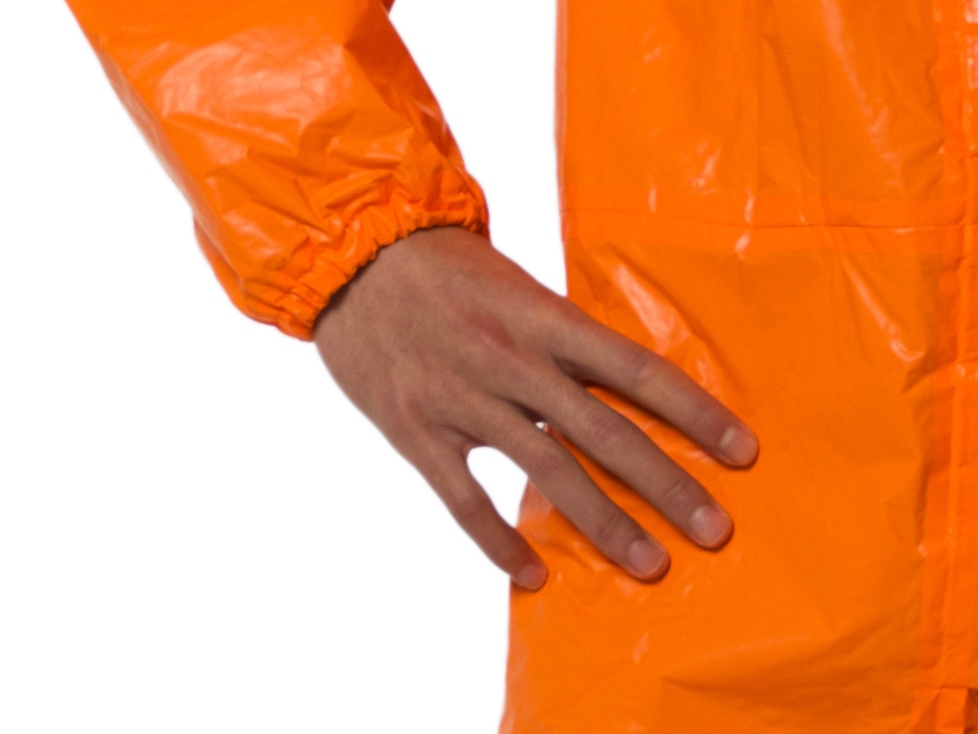

  • Elastic opening for tighter fit at wrist

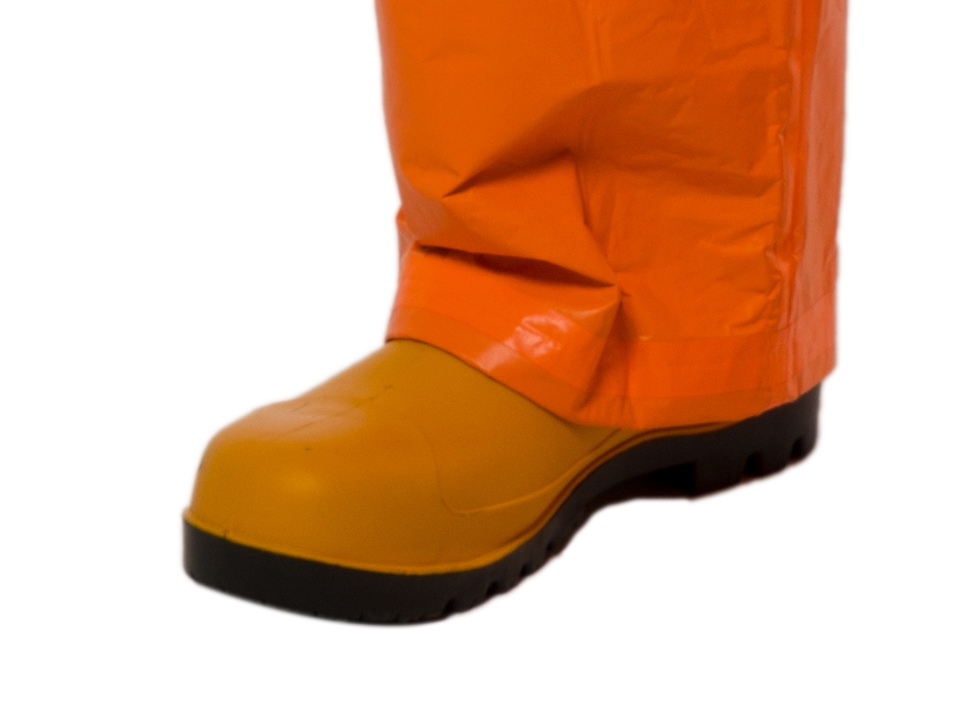

  • Open ankles, hemmed
  • Bright orange color for high visibility
  • Made in the USA, North American Free Trade Agreement (NAFTA) compliant and Trade Agreement Act (TAA) compliant

AVAILABLE OPTIONS

FINISHED DIMENSIONS

ADDITIONAL EQUIPMENT NEEDED

Fabric & Permeation/Penetration Data

Physical Properties

Data relating to mechanical performance of the fabrics used in DuPont chemical protective clothing, listed for the selected garment according to the test methods and relevant European standard, if applicable. Such properties, including abrasion and flex-cracking resistance, tensile strength and puncture resistance can help in the assessment of protective performance.

Property Test Method Typical Result
Basis Weight ASTM D3776 8.2 oz/yd2
Breaking Strength - Grab (CD) ASTM D751 170 lbf
Breaking Strength - Grab (MD). ASTM D751 155 lbf
Burst Strength - Ball ASTM D751 167 lbf
Tear Resistance - Trap Tear (CD) ASTM D5733 32 lbf
Tear Resistance - Trap Tear (MD) ASTM D5733 25 lbf
Thickness (PPSH-249) ASTM D1117 34 mils
Wearing Apparel Flammability 16 CFR 1610 Class 1
  •  According to EN 14325
  •  According to EN 14126
  •  According to EN 1073-2
  •  According to EN 14116
  •   According to EN 11612
  •  Front Tyvek ® / Back
  •  Based on test according to ASTM D-572
  •  See Instructions for Use for further information, limitations and warnings
  •  Larger than
  •  Smaller than
  •  Not Applicable
  •  Standard Deviation
