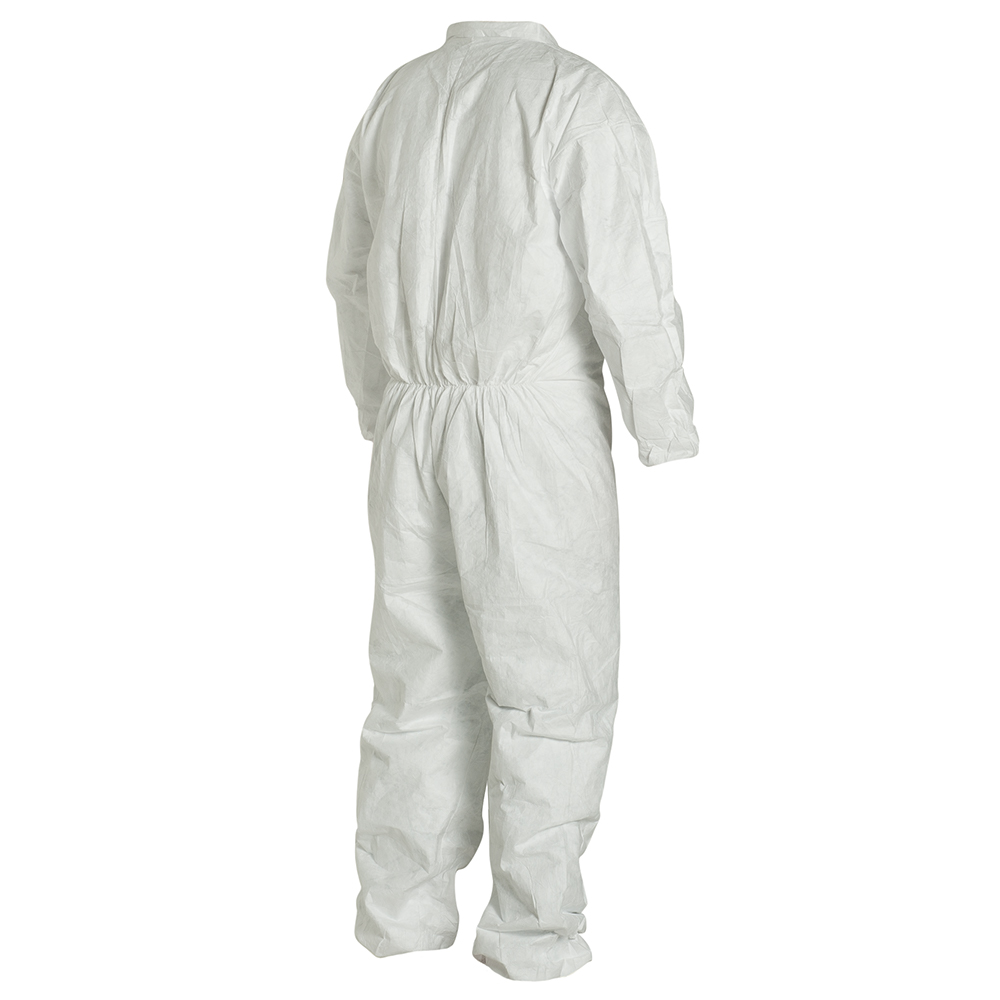

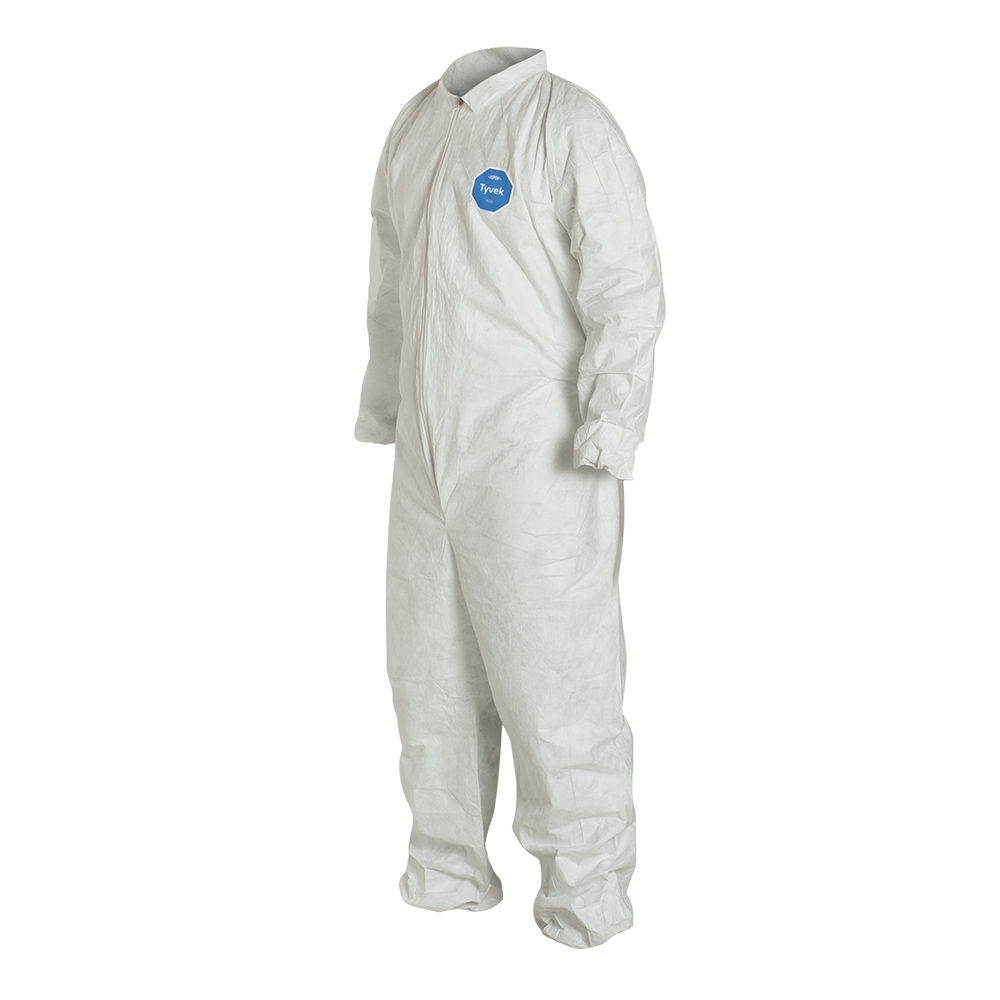

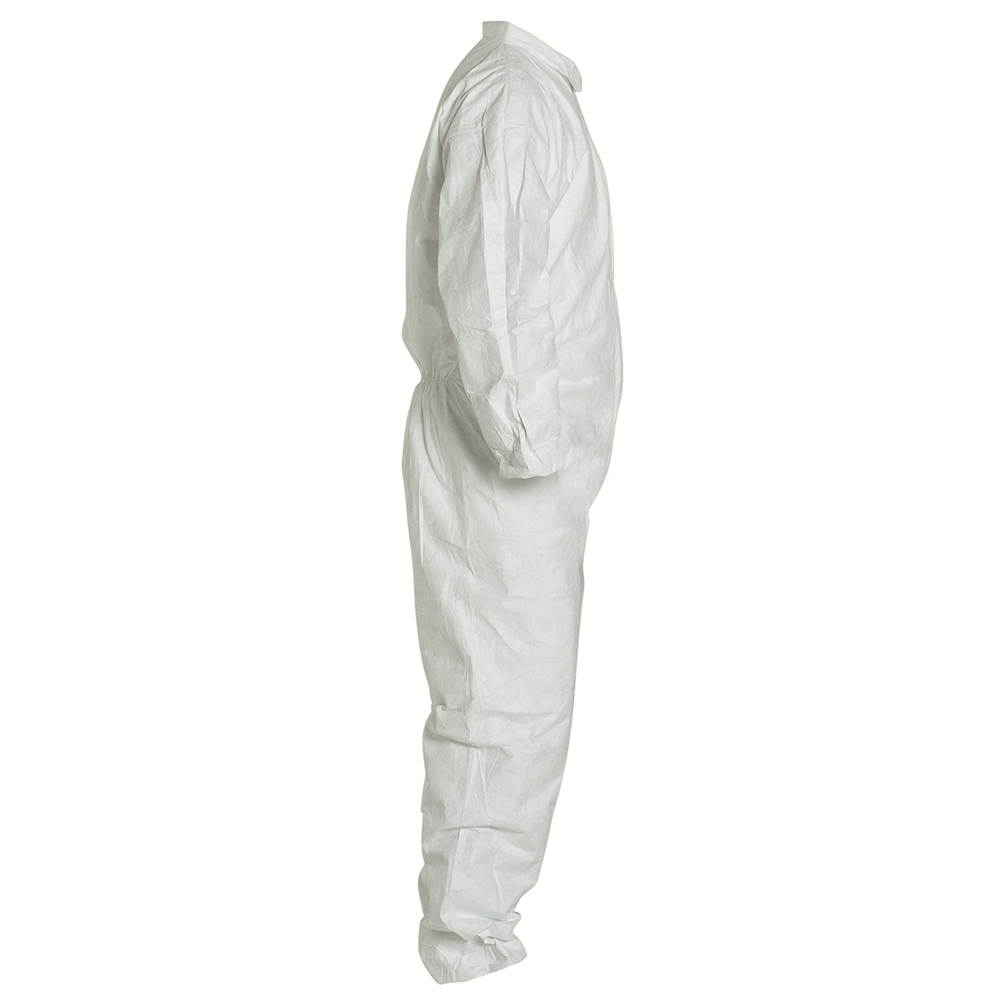

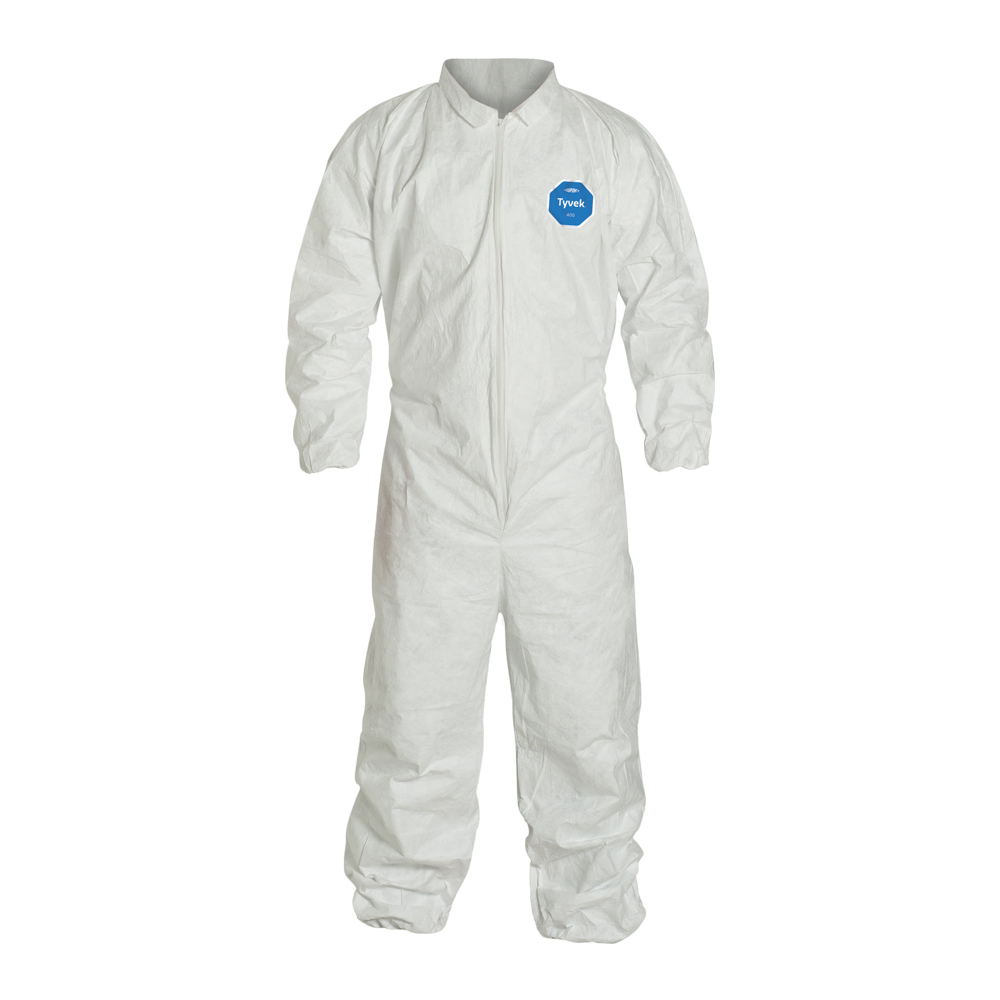

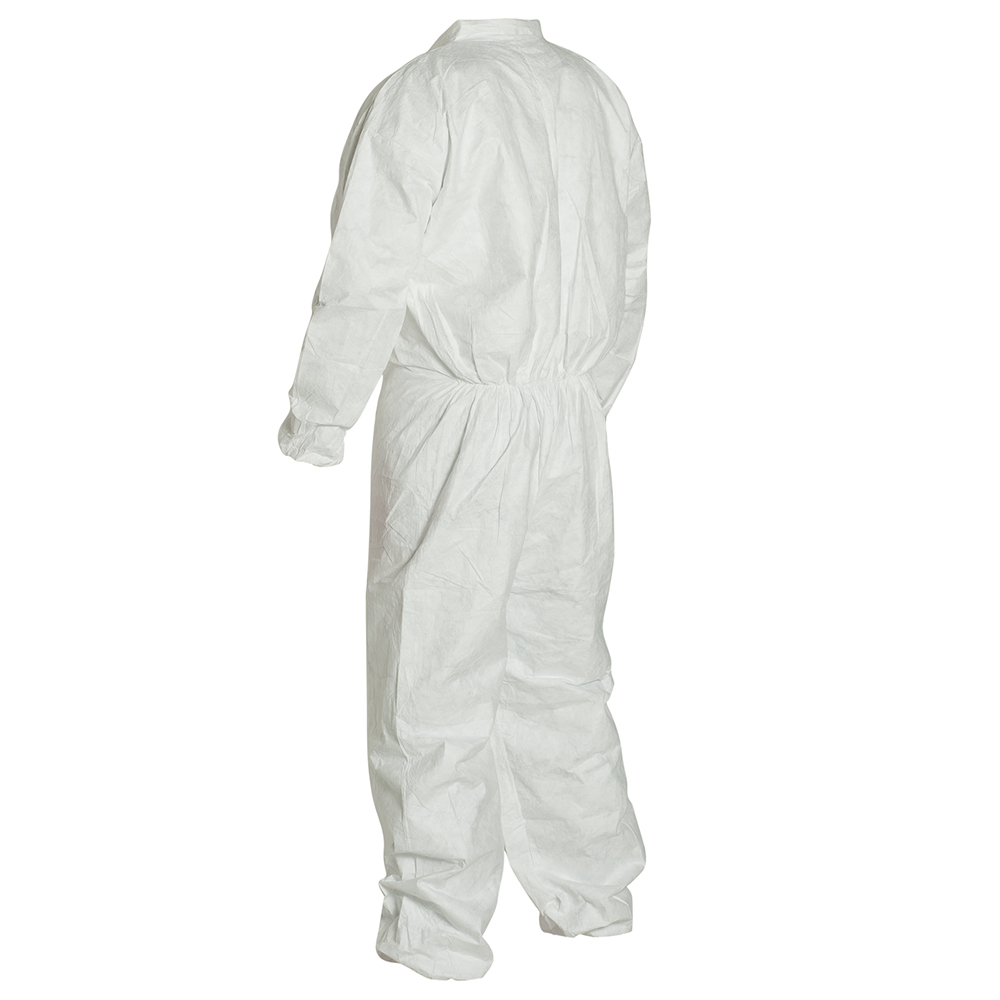

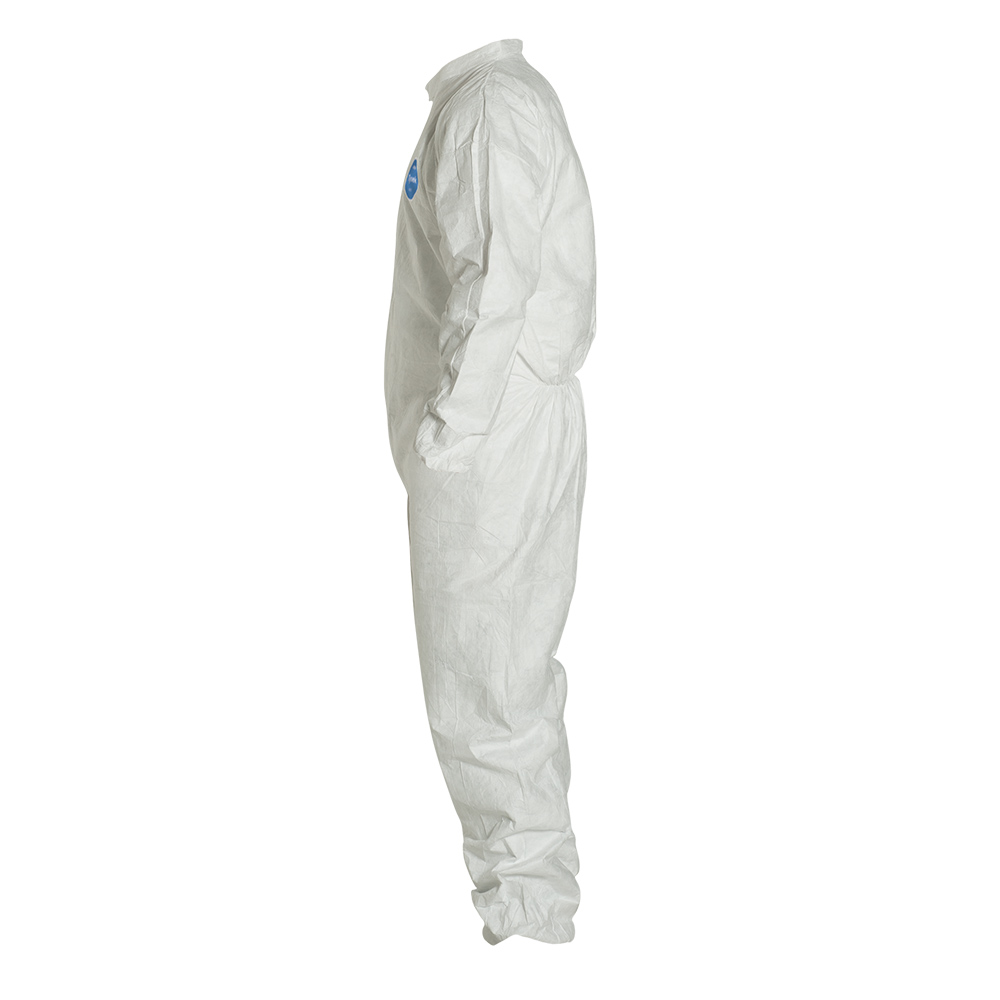

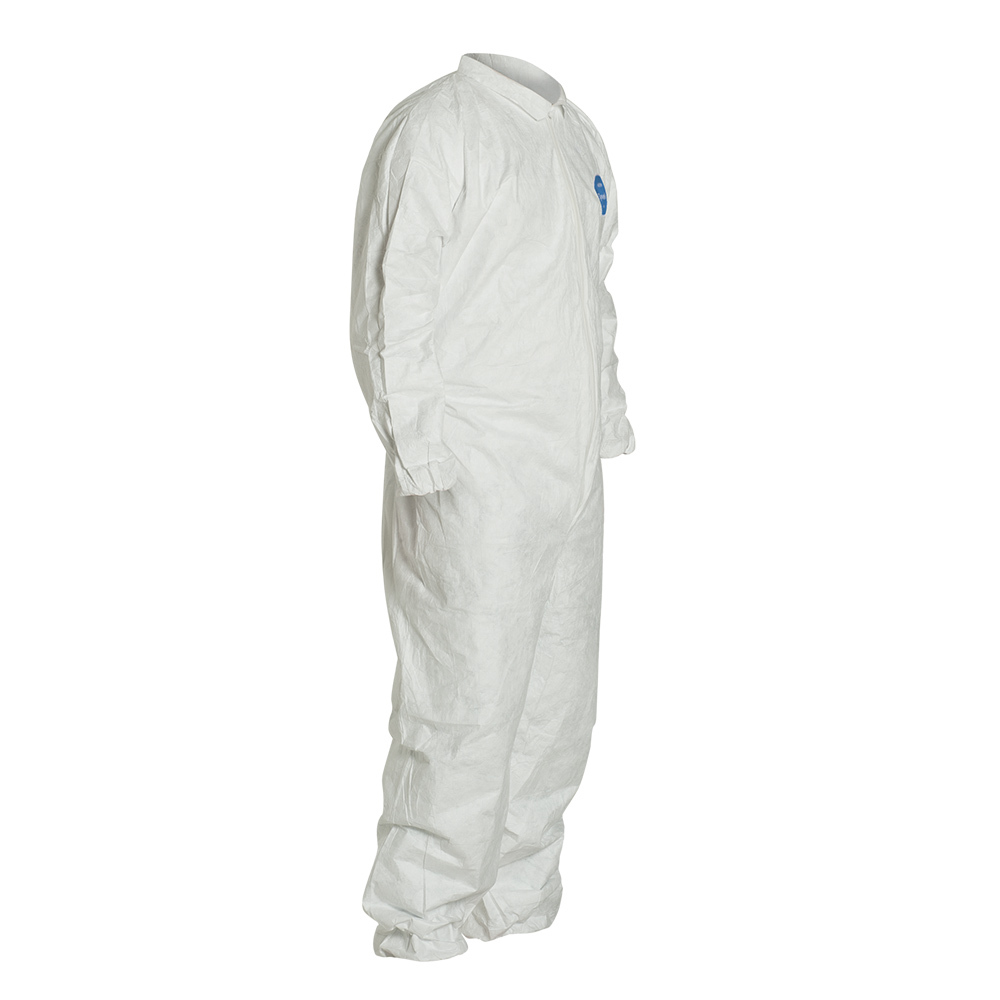

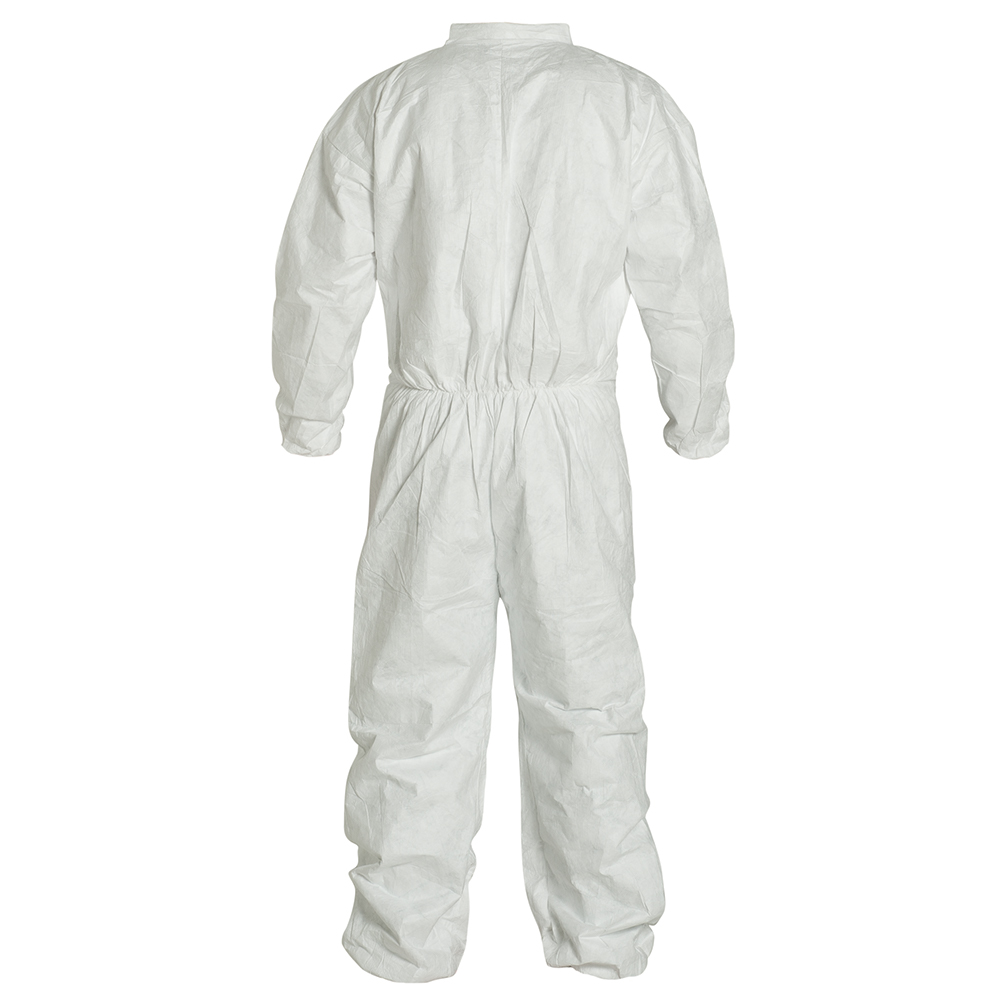

DuPont™ Tyvek® 400 Coverall. Comfort Fit Design. Collar. Elastic Wrists and Ankles. Elastic Waist. Serged Seams. White.
The following information must be read and accepted by the user before proceeding.
The DuPont™ SafeSPEC™ Product Selector Tools - Hazard, Industry, Guide, My Scenarios and Double-check- are intended to assist in choosing protective clothing for particular applications and does not replace the judgment of a qualified safety professional or industrial hygienist. Additional personal protective equipment, such as such as but not limited to: respiratory, eye, head, foot, and hand protection, may be required.
Supplying the proper hazard/chemical and exposure information for your hazard scenario is criticalin order to obtain an accurate recommendation. Inaccurate information could result in an improper recommendation. To ensure that the hazard/chemical information is accurate, consult the MSDS (Material Safety Data Sheet) supplied with the chemical. DuPont DISCLAIMS ANY RESPONSIBILITY OR LIABILITY FOR SUITS SELECTED USING these PRODUCT SELECTOR TOOLS, BASED ON ANY INCOMPLETE, INACCURATE, OR MISLEADING INFORMATION PROVIDED BY THE USER. There are other factors involved which could affect the final PPE (Personal Protective Equipment) decision and may not be considered in these Product Selector Tools. SafeSPEC™ Product Selector Tools provides information on DuPont suit styles for particular applications. The final decision on suit selection is the responsibility of the safety professional and end-user.
There are uses, environments and chemicals for which any garment will be unsuitable. It is the responsibility of the user to review available data and verify that the garment selected is appropriate for the intended use and meets all specified government and industry standards.
1 Choose Hazards
2 View Permeation Data
3 View Matching Products
Step 1 of 3
You may enter from one to five chemicals or other hazards that may be present in your working environment. Our tool will find the best product match for the combined hazards. Enter a single chemical or hazard if you wish to find the best possible product match for that one hazard.
Chemical or Other Hazard Name
1 Choose Hazards
2 View Permeation Data
3 View Matching Products
Step 2 of 3
The table below shows the Normalized Breakthrough times of fabrics for the hazards selected. (Testing Details) You can find specific garments that protect against these hazards by clicking the 'Next' button below.
Please select the Scenario you have saved for theSaved Scenario for
Technical Data Sheet
DuPont™ Tyvek® 400, model TY466S WH Option SR. Antislip boot cover. Slip-retardant sole. Stitched internal seams. Elastic top. Fixation ties. White.
DuPont™ Tyvek® 400, model TY466S WH. Boot cover. Stitched internal seams. Elastic top. Fixation ties. White.
DuPont™ Tyvek® 400, model TY500S WH. Sleeve. Stitched internal seam. Elastic openings. White.
DuPont™ Tyvek®400, model TY465S WH. Shoe cover. Stitched internal seams. Elastication. White.
DuPont™ Tyvek® 400, model TY222S WH. Labcoat. Knee-length. Stitched internal seams. Mandarin collar. Press stud closures. 3 pockets. White.
DuPont™ Tyvek® 400, model TY465S WH Option SR. Antislip shoe cover. Slip-retardant sole. Stitched internal seams. Elastication. White.
DuPont™ Tyvek® 400, model TY198S WH. Hooded coverall. Stitched external seams. Elastication at wrists, ankles and face. Elastication at waist (glued-in). Tyvek® zipper and flap. White.
DuPont™ Tyvek® 400 Coverall. Comfort Fit Design. Respirator Fit Hood. Elastic Wrists. Attached Skid-Resistant Boots. Elastic Waist. Serged Seams. White.
DuPont™ Tyvek® 400, model TY658S WH. Hood. Wide flange and elastic around face and neck. Stitched internal seams. White.
DuPont™ Tyvek®400, model TY351S WH. Pants. Elastication at waist. Stitched internal seams. No pockets. White.
DuPont™ Tyvek® 400, model TY272B WH. Apron. Shin-length. Neck and waist ties. White.
DuPont™ Tyvek® 400, model TY671S WH. Jacket with hood. Stitched internal seams. Dolman Sleeves. Zip. White.
Tyvek® 400 garments are composed of flash spun high density polyethylene which creates a unique, nonwoven material available only from DuPont. Tyvek® 400 provides an ideal balance of protection, durability and comfort of any limited use fabric technology. Tyvek® 400 fabric offers an inherent barrier against particles (down to 1.0 micron in size). Protection is built into the fabric itself; there are no films or laminates to abrade or wear away. Tyvek® 400 fabric's durability advantage over microporous film fabrics delivers consistently better barrier, even after wear and abrasion. Applications include: lead and asbestos abatement/remediation, general maintenance/operations, spray painting, general clean-up.
|Size||Sleeve Length||Chest Width||Inseam||Fits Chest||Fits Height|
|SM/MD||33 1/2||25||28||36 3/4 - 40 1/4||5'0" - 5'7"|
|LG||35||26 1/2||29||39 3/4 - 43 1/4||5'5" - 5'9"|
|XL||36 1/2||28||29 1/2||42 3/4 - 46 1/4||5'8" - 6'2"|
|2X||38||29 1/4||30 1/2||45 1/4 - 48 3/4||6'0" - 6'4"|
|3X||38||31 1/4||31 1/2||49 1/4 - 52 3/4||6'2" - 6'4"|
|4X||38 1/2||33||32 1/2||52 3/4 - 56 1/4||6'4" - 6'7"|
|5X||39 1/2||34 1/2||33 1/2||55 3/4 - 59 1/4||6'7" - 6'10"|
|6X||41||36 1/4||34 1/2||59 1/4 - 62 3/4||6'9" - 7'1"|
|7X||42||37 1/2||35 1/2||61 3/4 - 65 1/4||7'0" - 7'4"|
|Option Code||Description||Sizes||Part Number|
Data relating to mechanical performance of the fabrics used in DuPont chemical protective clothing, listed for the selected garment according to the test methods and relevant European standard, if applicable. Such properties, including abrasion and flex-cracking resistance, tensile strength and puncture resistance can help in the assessment of protective performance.
|Property||Test Method||Typical Result|
|Basis Weight||ASTM D3776||1.2 oz/yd2|
|Breaking Strength - Grab (CD)||ASTM D5034||22 lbf/in|
|Breaking Strength - Grab (MD).||ASTM D5034||18 lbf/in|
|Burst Strength - Mullen.||ASTM D774||50 psi|
|Hydrostatic Head||AATCC 127||45 inches H2O|
|Seam Strength||ASTM D1683||> 19 lbf|
|Surface Resistivity (25°C / 55% RH)||ASTM D257 (1081)||< 6.3 x 10^9 ohms/square|
|Thickness (PPSH-249)||ASTM D1777||5.9 mils|
|Wearing Apparel Flammability||16 CFR 1610||Class 1|
