Tyvek / Tychem® 6000

Model TF500T GY

Tychem® 6000

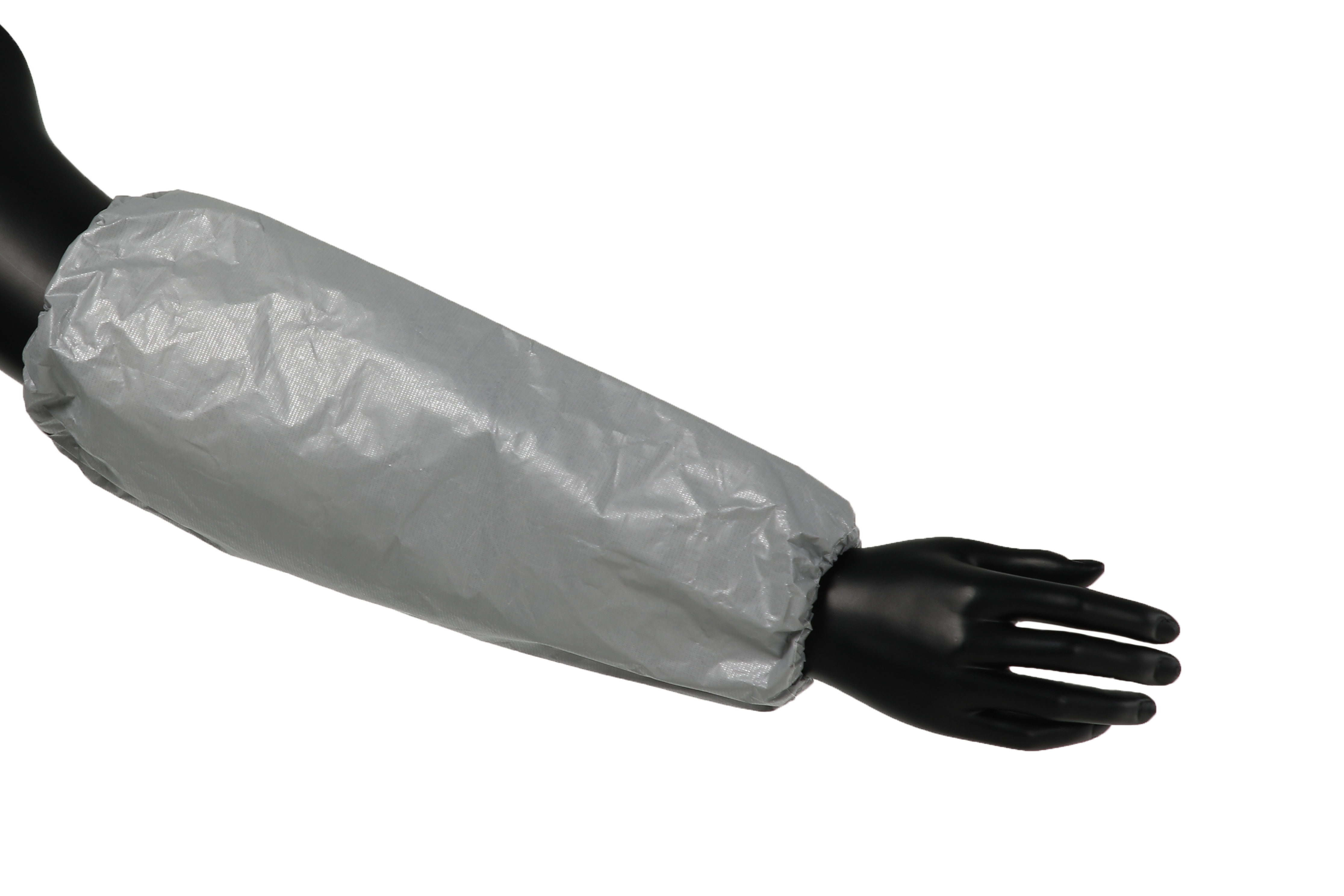

DuPont™ Tychem® 6000 , model TF500T GY. Sleeve. Stitched and over-taped seams. Grey.




Hover over image to zoom

CATIII

EN 14126

Name Description
Full Part Number TYFPS30SGYA0
Fabric/Materials Tychem® F
Design Sleeve with elastics
Seam Stitched and over-taped
Color Grey
Sizes One size
Quantity/Box 400 per box, bulk packed

FEATURES & PRODUCT DETAILS

DuPont™ Tychem® 6000, model TF500T GY. 45cm long and with wide elastics at cuffs and upper arm. Available in grey and in one size.
Specially designed for use with Tychem® apparel, Tychem® accessories can help offer enhanced protection for body parts that are more exposed to hazardous substances.
Tychem® 6000 garments and accessories are made from a lightweight and durable fabric consisting of a proprietary barrier film laminated to a heavy duty Tyvek® substrate. They offer excellent chemical permeation protection to an extensive range of chemicals, helping to protect personnel against numerous toxic industrial organic chemicals, highly concentrated inorganic chemicals (even under pressure), particulates, biohazards and certain chemical warfare agents.
Tychem® 6000 is used for a broad range of applications from chemical spill clean-up, emergency response, to military and petrochemical applications.

  • EN 14126 (barrier to infective agents)
  • Available in one size (45cm long)
  • Antistatic treatment (EN 1149-1) - on inside; see footnotes

ADDITIONAL EQUIPMENT NEEDED

SIZES

Fabric & Permeation/Penetration Data

Physical Properties

Data relating to mechanical performance of the fabrics used in DuPont chemical protective clothing, listed for the selected garment according to the test methods and relevant European standard, if applicable. Such properties, including abrasion and flex-cracking resistance, tensile strength and puncture resistance can help in the assessment of protective performance.

Property Test Method Typical Result EN
Abrasion Resistance 7 EN 530 Method 2 >2000 cycles 6 of 6 1
Basis Weight DIN EN ISO 536 120 g/m2 N/A
Bursting Strength (Mullenburst) ISO 2758 610 kPa N/A
Colour. N/A (598) Grey N/A
Exposure to high Temperature N/A (598) Garments seams opens at ˜98°C N/A
Exposure to low Temperature N/A (598) Flexibility retained down to -73°C N/A
Flex Cracking Resistance at -30 °C EN ISO 7854 Method B >1000 cycles N/A
Puncture Resistance EN 863 26 N 2 of 6 1
Resistance to Ignition 7 EN 13274-4 Method 3 No after flame, no drop formation, hole formation N/A
Resistance to water penetration DIN EN 20811 >30 kPa N/A
Resistenza alla rottura per flessione 7 EN ISO 7854 Method B >1000 cycles 1 of 6 1
Surface Resistance at RH 25% 7 EN 1149-1 ≤ 2,5x109 Ohm N/A
Surface Resistance at RH 25%, outside 7 EN 1149-1 No antistatic treatment N/A
Tensile Strength (MD) DIN EN ISO 13934-1 240 N 3 of 6 1
Tensile Strength (XD) DIN EN ISO 13934-1 245 N 3 of 6 1
Thickness (PPSH-249) DIN EN ISO 534 210 µm N/A
Trapezoidal Tear Resistance (MD) EN ISO 9073-4 40 N 2 of 6 1
Trapezoidal Tear Resistance (XD) EN ISO 9073-4 35 N 2 of 6 1
  •  According to EN 14325
  •  According to EN 14126
  •  According to EN 1073-2
  •  According to EN 14116
  •   According to EN 11612
  •  Front Tyvek ® / Back
  •  Based on test according to ASTM D-572
  •  See Instructions for Use for further information, limitations and warnings
  •  Larger than
  •  Smaller than
  •  Smaller than or equal to
  •  Not Applicable
  •  Standard Deviation

GARMENT PERFORMANCE

COMFORT

PENETRATION AND REPELLENCY

BIOLOGICAL BARRIER

WARNING

PERMEATION DATA

SPECIAL WARNINGS
